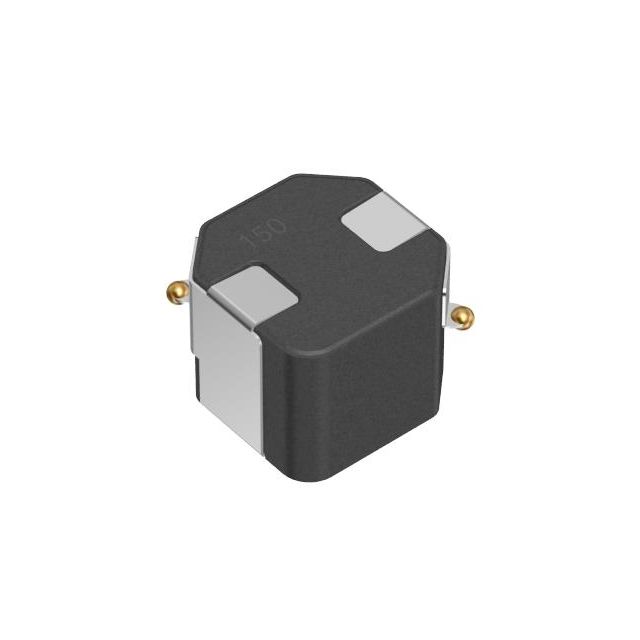

SPM7054VC-101M-D
ActiveEPCOS - TDK Electronics
POW INDUCTOR, AEC-Q200, 100UH, SHLD, 3.4A ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
SPM7054VC-101M-D
ActiveEPCOS - TDK Electronics
POW INDUCTOR, AEC-Q200, 100UH, SHLD, 3.4A ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SPM7054VC-101M-D |
|---|---|
| Current - Saturation (Isat) | 2.6 A |
| Current Rating (Amps) | 1.8 A |
| DC Resistance (DCR) | 334 mOhm |
| Height - Seated (Max) [Max] [z] | 5.4 mm |
| Height - Seated (Max) [Max] [z] | 0.213 in |
| Inductance | 100 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Metal Composite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension [x] | 0.295 in |
| Size / Dimension [x] | 7.5 mm |
| Size / Dimension [y] | 7 mm |
| Size / Dimension [y] | 0.276 in |
| Supplier Device Package | 7054 |
| Tolerance | 20 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.58 | |
| 10 | $ 1.34 | |||
| 25 | $ 1.23 | |||
| 50 | $ 1.10 | |||
| 100 | $ 0.92 | |||
| 250 | $ 0.89 | |||
| 500 | $ 0.84 | |||
| Digi-Reel® | 1 | $ 1.58 | ||
| 10 | $ 1.34 | |||
| 25 | $ 1.23 | |||
| 50 | $ 1.10 | |||
| 100 | $ 0.92 | |||
| 250 | $ 0.89 | |||
| 500 | $ 0.84 | |||
| Tape & Reel (TR) | 1000 | $ 0.79 | ||
| 3000 | $ 0.76 | |||
| 5000 | $ 0.74 | |||
| 10000 | $ 0.70 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 1.50 | |
| 10 | $ 0.93 | |||
| 25 | $ 0.92 | |||
| 50 | $ 0.90 | |||
| 100 | $ 0.88 | |||
| 250 | $ 0.79 | |||
| 1000 | $ 0.53 | |||
Description
General part information
SPM7054VC Series
100 µH Shielded Drum Core, Wirewound Inductor 1.8 A 334mOhm Nonstandard
