BD1603NUV-E2

NRND

Rohm Semiconductor

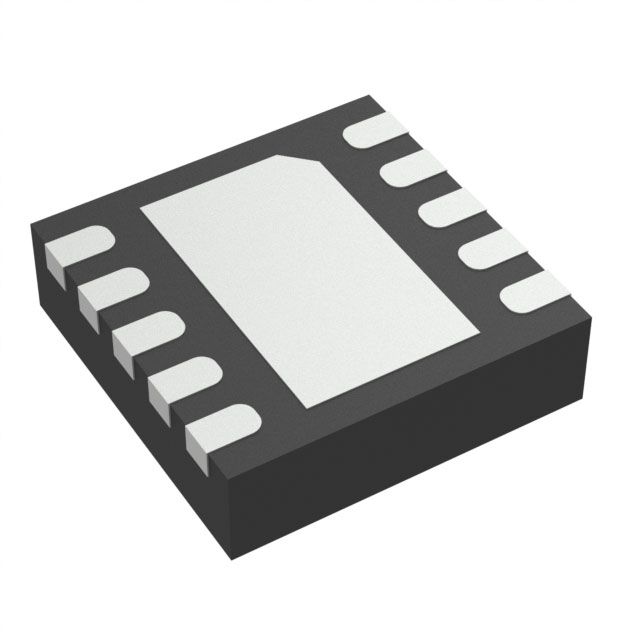

CHARGE PUMP REGULATOR 10-PIN VSON EP T/R

Search across all available documentation for this part.

NRND

Rohm Semiconductor

CHARGE PUMP REGULATOR 10-PIN VSON EP T/R

Technical Specifications

Parameters and characteristics for this part

Specification	BD1603NUV-E2

Applications	Backlight
Frequency	238 kHz, 642 kHz
Internal Switch(s)	True
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 °C
Package / Case	10-VFDFN Exposed Pad
Supplier Device Package	VSON010V3030
Topology	Switched Capacitor (Charge Pump)
Type	DC DC Regulator
Voltage - Output	4.5 V
Voltage - Supply (Max)	5.5 V

Part	Frequency	Mounting Type	Applications	Topology	Type	Voltage - Output	Supplier Device Package	Internal Switch(s)	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Package / Case	Voltage - Supply (Max)
Rohm Semiconductor BD1603NUV-E2	238 kHz 642 kHz	Surface Mount	Backlight	Switched Capacitor (Charge Pump)	DC DC Regulator	4.5 V	VSON010V3030		-30 °C	85 °C	1	10-VFDFN Exposed Pad	5.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Current consumption less than or equal to 2µA at shut-down

Low ripple output owing to a complementary charge pump circuit

Over current protection when VOUT short to GND.
