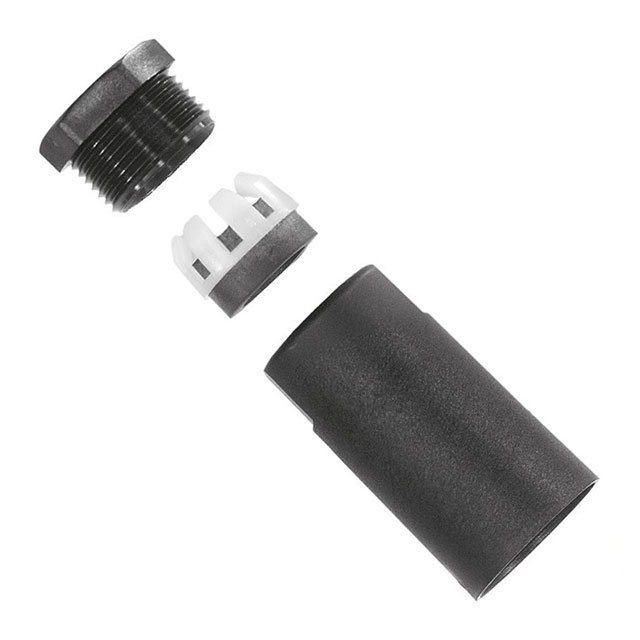

T 3102 0057 X

Active

Amphenol Tuchel Industrial

CONN BACKSHELL PG13.5 BLACK 10PC

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN BACKSHELL PG13.5 BLACK 10PC

Technical Specifications

Parameters and characteristics for this part

Specification	T 3102 0057 X

Cable Exit	180 °
Color	Black
Features	Clamping Ring, Gasket
For Use With/Related Products	C 16-1 Series Connectors
Includes	Gasket, Clamping Nut, Backshell, Cable Nut
Ingress Protection	IP67 - Dust Tight, Waterproof
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Shielding	Unshielded
Thread Size	PG13.5
Type	Backshell

Part	Includes	For Use With/Related Products	Material Flammability Rating	Ingress Protection	Type	Shielding	Features	Material	Color	Thread Size	Cable Exit
Amphenol Tuchel Industrial T 3102 0057 X	Backshell Cable Nut Clamping Nut Gasket	C 16-1 Series Connectors	UL94 V-0	IP67 - Dust Tight Waterproof	Backshell	Unshielded	Clamping Ring Gasket	Polyamide (PA66) Nylon 6/6	Black	PG13.5	180 °

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Black Connector Backshell PG13.5

Technical documentation and resources

No documents available
