2DA2018-7

Obsolete

Diodes Inc

TRANS PNP 12V 0.5A SOT-523

Search across all available documentation for this part.

Obsolete

Diodes Inc

TRANS PNP 12V 0.5A SOT-523

Technical Specifications

Parameters and characteristics for this part

Specification	2DA2018-7

Current - Collector (Ic) (Max) [Max]	500 mA
Current - Collector Cutoff (Max) [Max]	100 nA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	270
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C

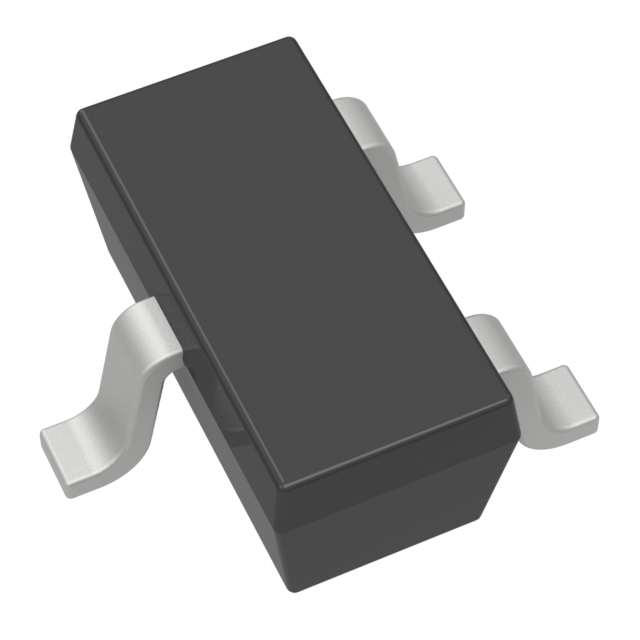

Package / Case	SOT-523
Power - Max [Max]	150 mW
Supplier Device Package	SOT-523
Transistor Type	PNP
Vce Saturation (Max) @ Ib, Ic	250 mV
Voltage - Collector Emitter Breakdown (Max) [Max]	12 V

PNP, 12V, 0.5A, SOT523

Part	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - Collector Cutoff (Max) [Max]	Current - Collector (Ic) (Max) [Max]	Supplier Device Package	Transistor Type	Vce Saturation (Max) @ Ib, Ic	Operating Temperature [Min]	Operating Temperature [Max]	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Power - Max [Max]	Mounting Type	Package / Case
Diodes Inc 2DA2018-7	12 V	100 nA	500 mA	SOT-523	PNP	250 mV	-55 °C	150 °C	270	150 mW	Surface Mount	SOT-523

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

PNP, 12V, 0.5A, SOT523
