ATS-59002-C1-R0

Active

Advanced Thermal Solutions Inc.

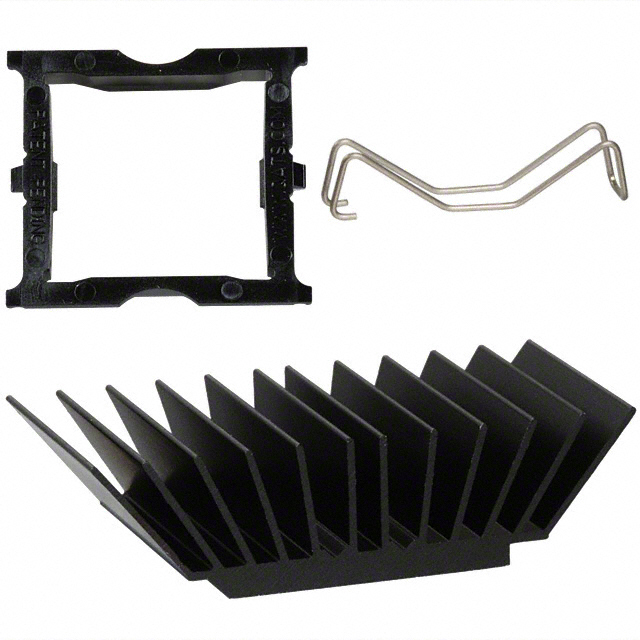

HEAT SINKS MAXIGRIP HEAT SINK ASSEMBLY, BLACK-ANODIZED, T766, 25MM COMP, 25X32X13MM

Search across all available documentation for this part.

Active

Advanced Thermal Solutions Inc.

HEAT SINKS MAXIGRIP HEAT SINK ASSEMBLY, BLACK-ANODIZED, T766, 25MM COMP, 25X32X13MM

Technical Specifications

Parameters and characteristics for this part

Specification	ATS-59002-C1-R0

Attachment Method	Clip
Length	25 mm
Length	0.984 in
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	Flip Chip Processors
Shape	Rectangular, Angled Fins
Thermal Resistance @ Forced Air Flow	200 LFM, 6.5 °C/W
Type	Top Mount
Width	32 mm
Width [x]	1.26 in

Heat Sinks maxiGRIP Heat Sink Assembly, Black-Anodized, T766, 21mm Comp, 28x45x11mm

Part	Package Cooled	Attachment Method	Material Finish	Type	Fin Height [z]	Fin Height [z]	Length [x]	Length [x]	Thermal Resistance @ Forced Air Flow	Shape	Material	Length	Width [x]	Width	Length	Width [y]	Width [y]
Advanced Thermal Solutions Inc. ATS-59005-C1-R0	Flip Chip Processors	Clip	Black Anodized	Top Mount	0.394 in	10 mm	29 mm	1.142 in	6.2 °C/W	Rectangular Angled Fins	Aluminum
Advanced Thermal Solutions Inc. ATS-59009-C1-R0	Flip Chip Processors	Clip	Black Anodized	Top Mount				2.441 in	3.2 °C/W 200 LFM	Rectangular Fins	Aluminum	62 mm
Advanced Thermal Solutions Inc. ATS-59002-C1-R0	Flip Chip Processors	Clip	Black Anodized	Top Mount					6.5 °C/W 200 LFM	Rectangular Angled Fins	Aluminum	25 mm	1.26 in	32 mm	0.984 in
Advanced Thermal Solutions Inc. ATS-59004-C1-R0	Flip Chip Processors	Clip	Black Anodized	Top Mount	0.472 in	12 mm	32 mm	1.26 "	3.2 °C/W 200 LFM	Rectangular Angled Fins	Aluminum					50 mm	1.969 in
