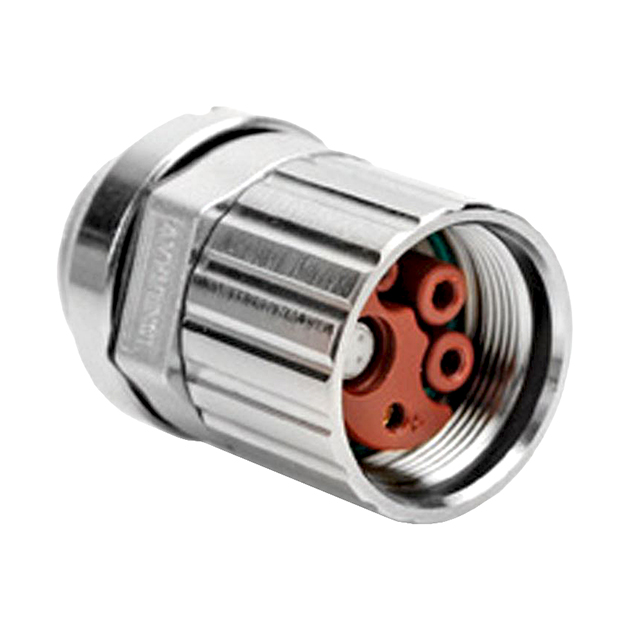

MB1WSN8H00

Active

Amphenol Sine Systems Corp

CONN PLUG HSG FMALE 5POS PNL MNT

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

CONN PLUG HSG FMALE 5POS PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	MB1WSN8H00

Connector Type	Plug Housing
Contact Shape	Circular
Contact Type	Crimp
Features	Coupling Nut
Housing Color	Silver
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Note	Contacts Not Included
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M23-5
Shielding	Shielded
Type	For Female Sockets

Part	Ingress Protection	Note	Contact Shape	Contact Type	Shell Material	Type	Features	Housing Color	Shell Size - Insert	Material Flammability Rating	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Shell Finish	Orientation	Insert Material
Amphenol Sine Systems Corp MB1WSN8H00	IP67 - Dust Tight Waterproof	Contacts Not Included	Circular	Crimp	Zinc Die Cast	For Female Sockets	Coupling Nut	Silver	M23-5	UL94 V-0	Plug Housing	-20 C	130 °C	Shielded	Nickel	Keyed	Polybutylene Terephthalate (PBT)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 (1 + 2 Power + 1 Quadrax + PE) Position Circular Connector Plug Housing Panel Mount Coupling Nut
