09200030820

Active

HARTING Technology Group

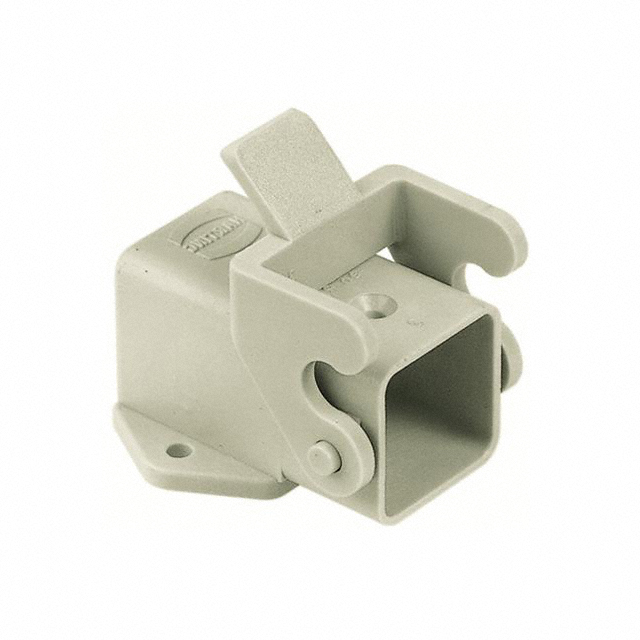

CONN BASE SIDE ENTRY SZ3A IP44

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

09200030820

Active

HARTING Technology Group

CONN BASE SIDE ENTRY SZ3A IP44

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09200030820

Connector Type	Base - Panel Mount 90°
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Polycarbonate (PC)
Ingress Protection	IP44
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	3 A
Size / Dimension [x]	40 mm
Size / Dimension [x]	1.575 in
Size / Dimension [y]	1.102 in
Size / Dimension [y]	28 mm
Size / Dimension [z]	1.043 in
Size / Dimension [z]	26.5 mm
Style	Side Entry

09200030 Series

Part	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Size	Lock Location	Housing Material	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Housing Finish	Thread Size	Housing Color	Ingress Protection	Style	Size / Dimension [y]	Size / Dimension [z]
HARTING Technology Group 09200030102	Hood	125 °C	-40 °C	3 A	Locking Clip (1) on Hood	Zinc Die Cast	0.953 in	24.2 mm	1.89 "	24.2 mm	0.953 in	48 mm	Powder Coated	PG13.5	Gray	IP44	Top Entry
HARTING Technology Group 09200030227	Base - Panel Mount 90°	125 °C	-40 °C	3 A	Locking Clip (1) on Base Bottom	Thermoplastic	1.575 in	28 mm	1.043 in	40 mm	1.102 in	26.5 mm		PG11	Black	IP44	Side Entry
HARTING Technology Group 09200030801	Base - Panel Mount 90°	125 °C	-40 °C	3 A	Locking Clip (1) on Base Bottom	Zinc Die Cast	1.102 in		1.063 "	28 mm	1.575 in		Powder Coated		Gray	IP44	Side Entry	40 mm	27 mm
HARTING Technology Group 09200030627	Hood - 90°	125 °C	-40 °C	3 A	Locking Clip (1) on Base Bottom	Thermoplastic	1.043 in		2.15 in	26.5 mm	1.043 "			PG11	Black	IP44	Side Entry	26.5 mm	54.6 mm
HARTING Technology Group 09200030810	Base - Panel Mount 90°	125 °C	-40 °C	3 A	Locking Clip (1) on Base Bottom	Zinc Die Cast	1.575 in		1.134 "	40 mm	1.181 in		Powder Coated		Gray	IP44	Side Entry	30 mm	28.8 mm
HARTING Technology Group 09200030220	Base - Panel Mount 90°	125 °C	-40 °C	3 A	Locking Clip (1) on Base Bottom	Thermoplastic	1.102 in		1.055 "	28 mm	1.575 in			PG11	Gray	IP44	Side Entry	40 mm	26.8 mm
HARTING Technology Group 09200030346	Base - Panel Mount	125 °C	-40 °C	3 A	Locking Clip (1) on Base Bottom	Thermoplastic	1.102 in		0.906 in	28 mm	1.575 in				Gray	IP67 - Dust Tight Waterproof	Bottom Entry	40 mm	23 mm
HARTING Technology Group 09200030827	Base - Panel Mount 90°	125 °C	-40 °C	3 A	Locking Clip (1) on Base Bottom	Polycarbonate (PC)	1.575 in	28 mm	1.043 in	40 mm	1.102 in	26.5 mm			Black	IP44	Side Entry
HARTING Technology Group 09200030401	Hood			3 A	Locking Clip (1) on Base Bottom		1.031 in		1.614 in	26.2 mm	1.031 in						Top Entry	26.2 mm	41 mm
HARTING Technology Group 09200030820	Base - Panel Mount 90°	125 °C	-40 °C	3 A	Locking Clip (1) on Base Bottom	Polycarbonate (PC)	1.575 in	28 mm	1.043 in	40 mm	1.102 in	26.5 mm	Powder Coated		Gray	IP44	Side Entry

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.47
		10	$ 8.05
		25	$ 9.07
		30	$ 7.45
		50	$ 7.18
		100	$ 6.84
		250	$ 6.41
		500	$ 6.11
		1000	$ 5.81

Description

General part information

09200030 Series

Base - Panel Mount 90° Connector Side Entry 3A IP44
