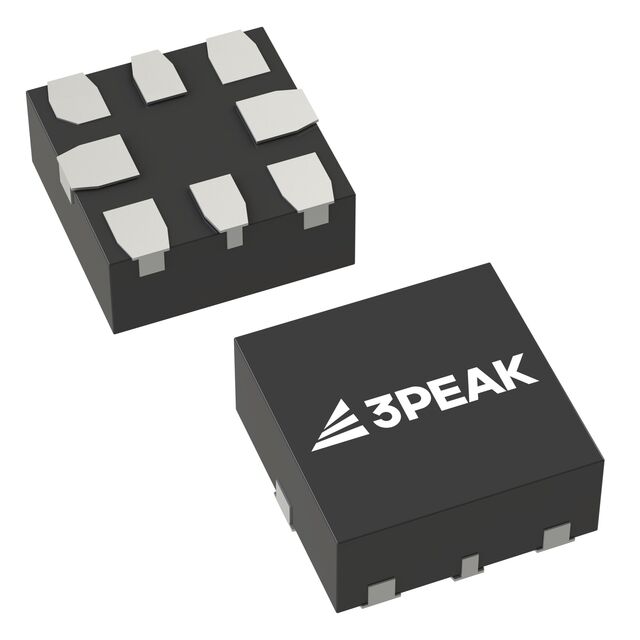

TPR3312-QF11R-S
Active3PEAK
IC VREF SERIES 1.25V 8UFQFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TPR3312-QF11R-S
Active3PEAK
IC VREF SERIES 1.25V 8UFQFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TPR3312-QF11R-S |
|---|---|
| Current - Supply | 180 µA |
| Mounting Type | Surface Mount |
| Noise - 0.1Hz to 10Hz | 25 µVp-p |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | 1.81 mOhm |
| Package / Case | 8-UFQFN |
| Reference Type | Series |
| Supplier Device Package | 8-QFN (1.5x1.5) |
| Temperature Coefficient | 30 ppm/°C |
| Tolerance | 0.15 % |
| Voltage - Input [Max] | 5.5 V |
| Voltage - Input [Min] | 2.1 V |
| Voltage - Output (Min/Fixed) | 1.25 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.63 | |
| 10 | $ 3.26 | |||
| 25 | $ 3.08 | |||
| 100 | $ 2.67 | |||
| 250 | $ 2.54 | |||
| 500 | $ 2.28 | |||
| 1000 | $ 1.92 | |||
| Digi-Reel® | 1 | $ 3.63 | ||
| 10 | $ 3.26 | |||
| 25 | $ 3.08 | |||
| 100 | $ 2.67 | |||
| 250 | $ 2.54 | |||
| 500 | $ 2.28 | |||
| 1000 | $ 1.92 | |||
| Tape & Reel (TR) | 3000 | $ 1.82 | ||
Description
General part information
TPR3312 Series
Series Voltage Reference IC Fixed 1.25V V ±0.15% 8-QFN (1.5x1.5)
