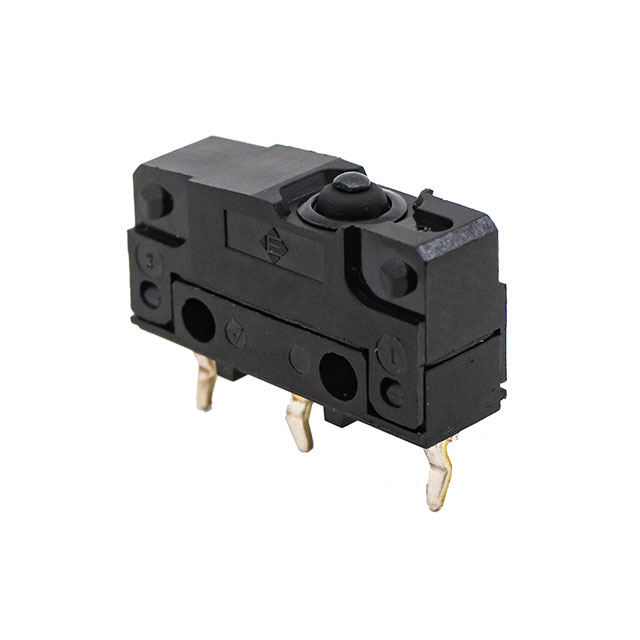

WS20850100F183P1A

Active

E-Switch

SWITCH SNAP ACTION SPDT 2A 250V

Search across all available documentation for this part.

Active

E-Switch

SWITCH SNAP ACTION SPDT 2A 250V

Technical Specifications

Parameters and characteristics for this part

Part	Operating Force	Mechanical Life	Termination Style	Circuit	Current Rating (Amps)	Ingress Protection	Electrical Life	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Switch Function	Voltage Rating - AC	Mounting Type
E-Switch WS20850100F183C1A	183 gf	500000 Cycles	Quick Connect - 0.110" (2.8mm)	SPDT	2 A	IP67 - Dust Tight Waterproof	100000 Cycles	Round (Pin Plunger)	-25 °C	85 °C	30 V	On-On	250 V
E-Switch WS20850100F183P1A	183 gf	500000 Cycles	PC Pin	SPDT	2 A	IP67 - Dust Tight Waterproof	100000 Cycles	Round (Pin Plunger)	-25 °C	85 °C	30 V	On-On	250 V	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1000	$ 1.54

General part information

Switch SPDT Through Hole
