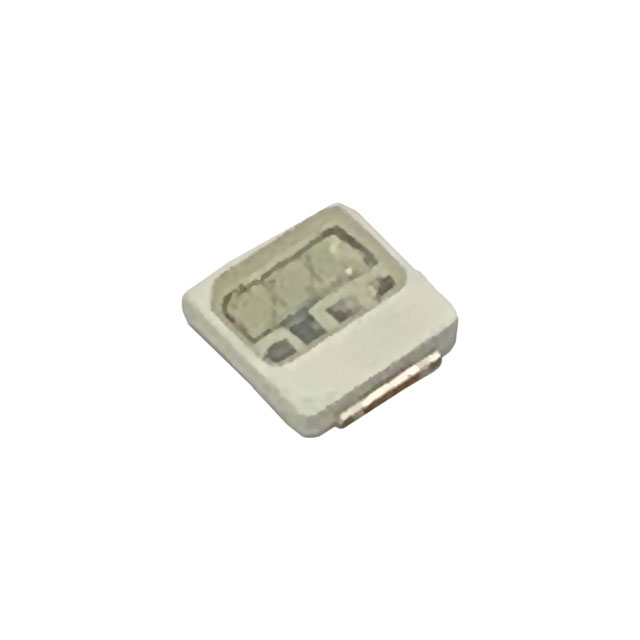

AB-EZD10A-B3-K13

Active

American Bright Optoelectronics Corporation

LED AB-EZD AMBER 1300K 3030

Search across all available documentation for this part.

Active

American Bright Optoelectronics Corporation

LED AB-EZD AMBER 1300K 3030

Technical Specifications

Parameters and characteristics for this part

Specification	AB-EZD10A-B3-K13

Color	Amber
Height - Seated (Max) [Max] [z]	0.52 mm
Height - Seated (Max) [Max] [z]	0.02 "
Luminous Flux @ Current/Temperature	65 lm
Mounting Type	Surface Mount
Package / Case	1212
Package / Case	3030 Metric
Size / Dimension [x]	0.118 in
Size / Dimension [x]	3 mm
Size / Dimension [y]	3 mm
Size / Dimension [y]	0.118 in
Supplier Device Package	3030
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	24 V
Wavelength	1300 K

Part	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Package / Case	Supplier Device Package	Voltage - Forward (Vf) (Typ)	CCT (K) [Min]	CCT (K)	CCT (K) [Max]	Flux @ 85°C, Current - Test	Flux @ 25°C, Current - Test	Viewing Angle	Color	Thermal Resistance of Package [diameter]	Mounting Type	CRI (Color Rendering Index)	Wavelength	Luminous Flux @ Current/Temperature
American Bright Optoelectronics Corporation AB-EZD10C-B3-K65	0.118 in	3 mm	3 mm	0.118 in	0.52 mm	0.02 "	1212	3030 Metric	3030	24 V	6000 K	6500 K	7000 K	90 lm	110 lm	120 °	Cool White	15 °C/W	Surface Mount	70
American Bright Optoelectronics Corporation AB-EZD10A-B3-K13	0.118 in	3 mm	3 mm	0.118 in	0.52 mm	0.02 "	1212	3030 Metric	3030	24 V						120 °	Amber		Surface Mount		1300 K	65 lm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.36
	Digi-Reel®	1	$ 1.36
	Tape & Reel (TR)	10000	$ 0.49

General part information

LED Lighting Color AB-EZD Amber 1300K 1212 (3030 Metric)
