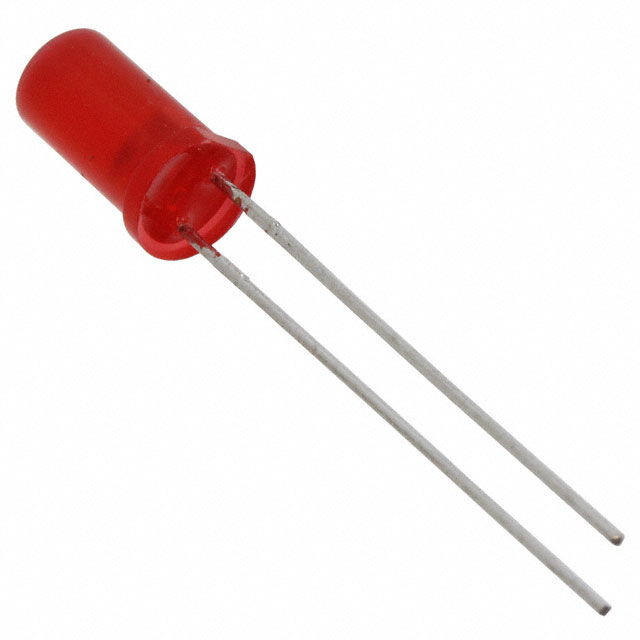

WP483IDT

Active

Kingbright

LED UNI-COLOR RED 627NM 2-PIN T-1 3/4 BAG

Search across all available documentation for this part.

Active

Kingbright

LED UNI-COLOR RED 627NM 2-PIN T-1 3/4 BAG

Technical Specifications

Parameters and characteristics for this part

Part	Configuration	Wavelength - Dominant	Voltage - Forward (Vf) (Typ)	Lens Size	Lens Size	Color	Wavelength - Peak	Millicandela Rating	Current - Test	Lens Color	Supplier Device Package	Package / Case	Mounting Type	Height (Max) [Max] [z]	Size / Dimension [diameter]	Viewing Angle	Lens Transparency
Kingbright WP483IDT	Standard	617 nm	2 V	T-1 3/4	5 mm	Red	627 nm	4 mcd	20 mA	Red	T-1 3/4	Radial	Through Hole	9.6 mm	5 mm	100 °	Diffused
Kingbright WP483YDT	Standard	588 nm	2.1 V	T-1 3/4	5 mm	Yellow	590 nm	3 mcd	20 mA	Yellow	T-1 3/4	Radial	Through Hole	9.6 mm	5 mm	100 °	Diffused
Kingbright WP483EDT	Standard	617 nm	2 V	T-1 3/4	5 mm		627 nm	4 mcd	20 mA	Orange	T-1 3/4	Radial	Through Hole	9.6 mm	5 mm	100 °	Diffused

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Red 617nm LED Indication - Discrete 2V Radial
