TS02-66-170-BK-160-LCR-D

Active

CUI Devices

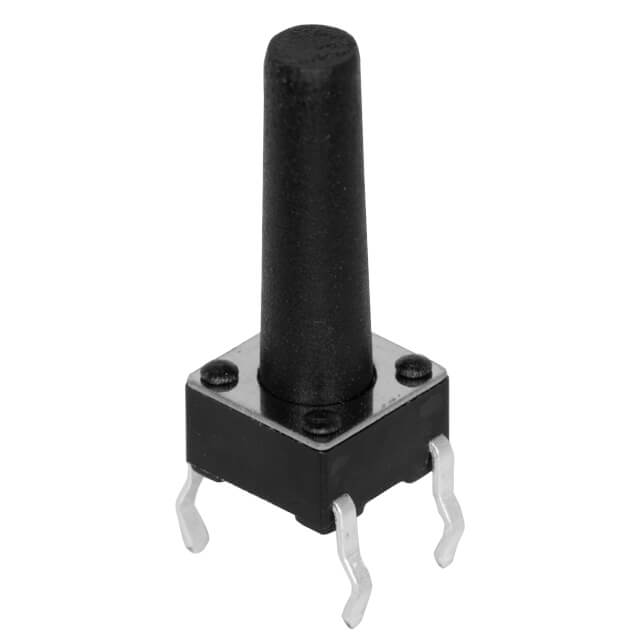

MICROSWITCH TACT; SPST-NO; POS: 2; 0.05A/12VDC; THT; NONE; 1.6N

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TS02-66-170-BK-160-LCR-D

Active

CUI Devices

MICROSWITCH TACT; SPST-NO; POS: 2; 0.05A/12VDC; THT; NONE; 1.6N

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TS02-66-170-BK-160-LCR-D

Actuator Height off PCB, Vertical [z]	17 mm
Actuator Material	Polyamide (PA66), Nylon 6/6
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Illumination	Non-Illuminated
Mechanical Life	80000 Cycles
Mounting Type	Through Hole
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Outline [x]	6 mm
Outline [y]	6 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	PC Pin

TS02-66 Series

...

Part	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Switch Travel	Contact Rating @ Voltage	Actuator Material	Actuator Type	Outline [y]	Outline [x]	Circuit	Illumination	Switch Function	Actuator Height off PCB, Vertical [z]	Mechanical Life	Actuator Orientation	Operating Force	Actuator Height off PCB, Vertical
CUI Devices TS02-66-170-BK-160-LCR-D	PC Pin	-30 ░C	80 C	Through Hole	0.25 mm	0.05 A 12 VDC	Nylon 6/6 Polyamide (PA66)	Standard	6 mm	6 mm	SPST-NO	Non-Illuminated	Off-Mom	17 mm	80000 Cycles	Top Actuated
CUI Devices TS02-66-95-BK-260-LCR-D	PC Pin	-30 ░C	80 C	Through Hole	0.25 mm	0.05 A 12 VDC	Nylon 6/6 Polyamide (PA66)	Standard	6 mm	6 mm	SPST-NO	Non-Illuminated	Off-Mom		60000 Cycles	Top Actuated	260 gf	9.5 mm
CUI Devices TS02-66-73-BK-260-LCR-D	PC Pin	-30 ░C	80 C	Through Hole	0.25 mm	0.05 A 12 VDC	Nylon 6/6 Polyamide (PA66)	Standard	6 mm	6 mm	SPST-NO	Non-Illuminated	Off-Mom	7.3 mm	60000 Cycles	Top Actuated	260 gf
CUI Devices TS02-66-130-BK-260-SCR-D	PC Pin	-30 ░C	80 C	Through Hole	0.25 mm	0.05 A 12 VDC	Nylon 6/6 Polyamide (PA66)	Standard	6 mm	6 mm	SPST-NO	Non-Illuminated	Off-Mom	13 mm	60000 Cycles	Top Actuated	260 gf
CUI Devices TS02-66-110-BK-160-LCR-D	PC Pin	-30 ░C	80 C	Through Hole	0.25 mm	0.05 A 12 VDC	Nylon 6/6 Polyamide (PA66)	Standard	6 mm	6 mm	SPST-NO	Non-Illuminated	Off-Mom		80000 Cycles	Top Actuated		11 mm
CUI Devices TS02-66-80-BK-160-LCR-D	PC Pin	-30 ░C	80 C	Through Hole	0.25 mm	0.05 A 12 VDC	Nylon 6/6 Polyamide (PA66)	Standard	6 mm	6 mm	SPST-NO	Non-Illuminated	Off-Mom	8 mm	80000 Cycles	Top Actuated
CUI Devices TS02-66-50-BK-100-SCR-D	PC Pin	-30 ░C	80 C	Through Hole	0.25 mm	0.05 A 12 VDC	Nylon 6/6 Polyamide (PA66)	Standard	6 mm	6 mm	SPST-NO	Non-Illuminated	Off-Mom	5.5 mm	100000 Cycles	Top Actuated	100 gf
CUI Devices TS02-66-130-BK-160-SCR-D	PC Pin	-30 ░C	80 C	Through Hole	0.25 mm	0.05 A 12 VDC	Nylon 6/6 Polyamide (PA66)	Standard	6 mm	6 mm	SPST-NO	Non-Illuminated	Off-Mom	13 mm	80000 Cycles	Top Actuated
CUI Devices TS02-66-50-BK-100-LCR-D	PC Pin	-30 ░C	80 C	Through Hole	0.25 mm	0.05 A 12 VDC	Nylon 6/6 Polyamide (PA66)	Standard	6 mm	6 mm	SPST-NO	Non-Illuminated	Off-Mom	5.5 mm	100000 Cycles	Top Actuated	100 gf
CUI Devices TS02-66-95-BK-100-LCR-D	PC Pin	-30 ░C	80 C	Through Hole	0.25 mm	0.05 A 12 VDC	Nylon 6/6 Polyamide (PA66)	Standard	6 mm	6 mm	SPST-NO	Non-Illuminated	Off-Mom		100000 Cycles	Top Actuated	100 gf	9.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 0.15
		10	$ 0.12
		25	$ 0.11
		100	$ 0.10
		250	$ 0.09
		500	$ 0.09
		1000	$ 0.08
		2500	$ 0.07
		5000	$ 0.07

Description

General part information

TS02-66 Series

Tactile Switch SPST-NO Top Actuated Through Hole
