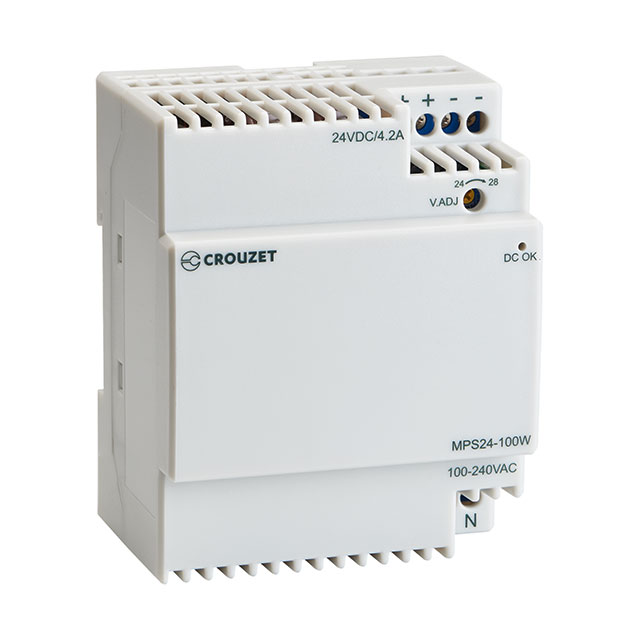

89451010 - 89451010

89451010

Active
Crouzet

AC/DC DIN RAIL SUPPLY 24V 100W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPower Supplies CSADatasheet+2
89451010 - 89451010

89451010

Active
Crouzet

AC/DC DIN RAIL SUPPLY 24V 100W

Deep-Dive with AI

DocumentsPower Supplies CSADatasheet+2

Technical Specifications

Parameters and characteristics for this part

Specification89451010
AC Voltage - Input [Max]240 VAC
AC Voltage - Input [Min]100 VAC
ApplicationsIndustrial, ITE (Commercial)
Approval AgencyUL, CSA, CE
Current - Output (Max) [Max]4.2 A
Efficiency90 %
FeaturesPFC, Universal Input
Input TypeAC
Number of Outputs1
Operating Temperature [Max]71 °C
Operating Temperature [Min]-20 °C
Power (Watts)100 W
Size / Dimension [x]55.6 mm
Size / Dimension [x]2.19 in
Size / Dimension [y]2.83 in
Size / Dimension [y]72 mm
Size / Dimension [z]90.9 mm
Size / Dimension [z]3.58 in
Voltage - Isolation3000 V
Voltage - Output 124 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBox 1$ 113.07

Description

General part information

89451 Series

AC/DC DIN RAIL SUPPLY 24V 100W
