B2B-XH-A-GU

Active

JST Sales America Inc.

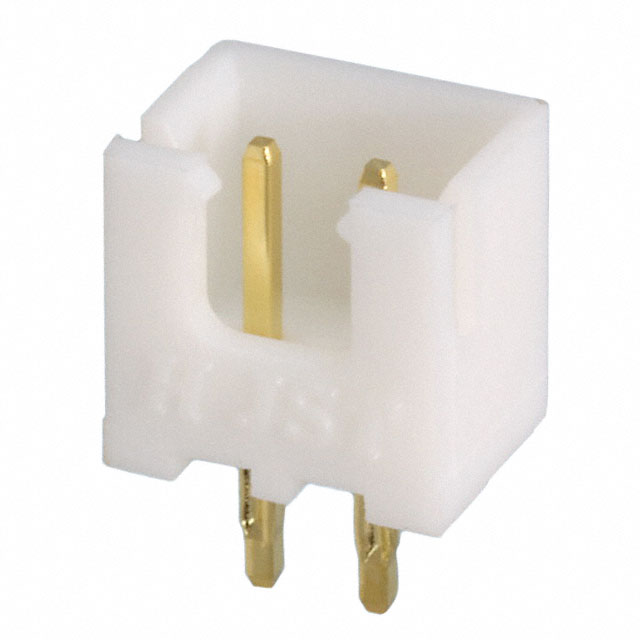

CONN HEADER VERT 2POS 2.5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsJST Prefix Suffix Chart Datasheet

B2B-XH-A-GU

Active

JST Sales America Inc.

CONN HEADER VERT 2POS 2.5MM

Deep-Dive with AI

DocumentsJST Prefix Suffix Chart Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	B2B-XH-A-GU

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	16 Áin
Contact Finish Thickness - Mating	0.41 Ám
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Detent Lock
Insulation Color	Natural
Insulation Height [z]	7 mm
Insulation Height [z]	0.276 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Mated Stacking Heights	9.8 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder, Press-Fit
Voltage Rating	250 VDC

B2B-XH-A Series

Part	Contact Type	Contact Material	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Material Flammability Rating	Termination	Number of Positions Loaded	Number of Rows	Pitch - Mating	Pitch - Mating	Mounting Type	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Color	Number of Positions	Current Rating (Amps)	Shrouding	Voltage Rating	Insulation Material	Style	Insulation Height [z]	Insulation Height [z]	Mated Stacking Heights	Connector Type	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Features
JST Sales America Inc. B2B-XH-A-M	Male Pin	Brass	Tin	-25 °C	85 °C	Detent Lock	UL94 V-0	Press-Fit Solder	All	1	2.5 mm	0.098 in	Through Hole	0.134 in	3.4 mm	Green	2	3 A	Shrouded - 4 Wall	250 VDC	Polyamide (PA66) Nylon 6/6	Board to Cable/Wire	7 mm	0.276 in	9.8 mm	Header	Square
JST Sales America Inc. B2B-XH-A	Male Pin	Brass	Tin	-25 °C	85 °C	Detent Lock	UL94 V-0	Press-Fit Solder	All	1	2.5 mm	0.098 in	Through Hole	0.134 in	3.4 mm	Natural	2	3 A	Shrouded - 4 Wall	250 VDC	Polyamide (PA66) Nylon 6/6	Board to Cable/Wire	7 mm	0.276 in	9.8 mm	Header	Square
JST Sales America Inc. B2B-XH-A-GU	Male Pin	Brass		-25 °C	85 °C	Detent Lock	UL94 V-0	Press-Fit Solder	All	1	2.5 mm	0.098 in	Through Hole	0.134 in	3.4 mm	Natural	2	3 A	Shrouded - 4 Wall	250 VDC	Polyamide (PA66) Nylon 6/6	Board to Cable/Wire	7 mm	0.276 in	9.8 mm	Header	Square	16 Áin	0.41 Ám	Gold
JST Sales America Inc. B2B-XH-AM	Male Pin	Brass	Tin	-25 °C	85 °C	Detent Lock	UL94 V-0	Press-Fit Solder	All	1	2.5 mm	0.098 in	Through Hole	0.134 in	3.4 mm	Natural	2	3 A	Shrouded - 4 Wall	250 VDC	Polyamide (PA66) Nylon 6/6	Board to Cable/Wire	7 mm	0.276 in	9.8 mm	Header	Square				Board Guide

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.29
		10	$ 0.25
		100	$ 0.19
		1000	$ 0.14
		5000	$ 0.12
		10000	$ 0.11

Description

General part information

B2B-XH-A Series

Connector Header Through Hole 2 position 0.098" (2.50mm)

Documents

Technical documentation and resources

JST Prefix Suffix Chart

Datasheet
