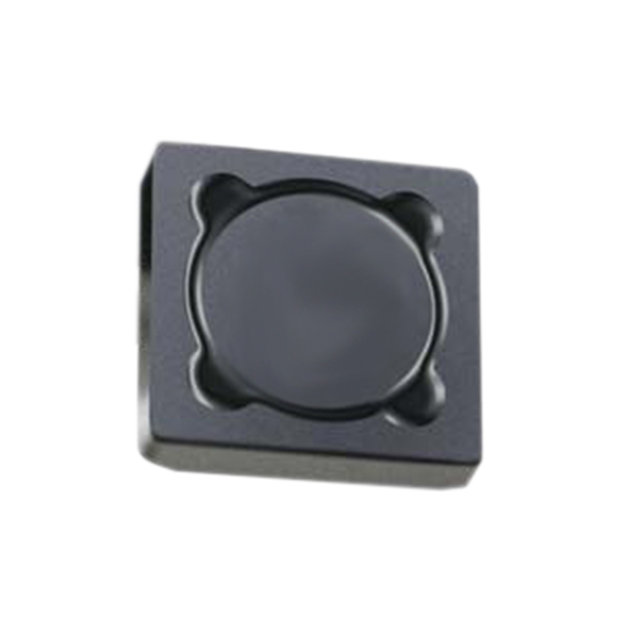

34L473C

Obsolete

Murata Power Solutions Inc.

±20% SMD,5.2X5.2MM POWER INDUCTORS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPower Magnetics Selection Guide

34L473C

Obsolete

Murata Power Solutions Inc.

±20% SMD,5.2X5.2MM POWER INDUCTORS ROHS

Deep-Dive with AI

DocumentsPower Magnetics Selection Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	34L473C

Current Rating (Amps)	0.31 A
DC Resistance (DCR)	1.82 Ohm
Height - Seated (Max) [Max]	1.2 mm
Height - Seated (Max) [Max]	0.047 in
Inductance	47 µH
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Nonstandard
Shielding	Shielded
Size / Dimension [x]	0.205 in
Size / Dimension [x]	5.2 mm
Size / Dimension [y]	0.205 "
Size / Dimension [y]	5.2 mm
Tolerance	20 %
Type	Wirewound

34L Series

Part	Shielding	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Inductance	Type	Mounting Type	Current Rating (Amps)	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	DC Resistance (DCR) [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	DC Resistance (DCR)
Murata Power Solutions Inc. 34L332C	Shielded	1.2 mm	0.047 in	3.3 µH	Wirewound	Surface Mount	1 A	30 %	125 °C	-40 °C	Nonstandard	150 mOhm	0.205 "	5.2 mm	0.205 in	5.2 mm
Murata Power Solutions Inc. 34L224C	Shielded	1.2 mm	0.047 in	220 µH	Wirewound	Surface Mount	160 mA	20 %	125 °C	-40 °C	Nonstandard	8 Ohm	0.205 "	5.2 mm	0.205 in	5.2 mm
Murata Power Solutions Inc. 34L472C	Shielded	1.2 mm	0.047 in	4.7 ÁH	Wirewound	Surface Mount	700 mA	30 %	125 °C	-40 °C	Nonstandard		0.205 "	5.2 mm	0.205 in	5.2 mm	180 mOhm
Murata Power Solutions Inc. 34L154C	Shielded	1.2 mm	0.047 in	150 µH	Wirewound	Surface Mount	0.18 A	20 %	125 °C	-40 °C	Nonstandard	6.1 Ohm	0.205 "	5.2 mm	0.205 in	5.2 mm
Murata Power Solutions Inc. 34L473C	Shielded	1.2 mm	0.047 in	47 µH	Wirewound	Surface Mount	0.31 A	20 %	125 °C	-40 °C	Nonstandard		0.205 "	5.2 mm	0.205 in	5.2 mm	1.82 Ohm
Murata Power Solutions Inc. 34L122C	Shielded	1.2 mm	0.047 in	1.2 µH	Wirewound	Surface Mount	1.7 A	30 %	125 °C	-40 °C	Nonstandard	75 mOhm	0.205 "	5.2 mm	0.205 in	5.2 mm
Murata Power Solutions Inc. 34L682C	Shielded	1.2 mm	0.047 in	6.8 µH	Wirewound	Surface Mount	0.68 A	30 %	125 °C	-40 °C	Nonstandard	265 mOhm	0.205 "	5.2 mm	0.205 in	5.2 mm
Murata Power Solutions Inc. 34L683C	Shielded	1.2 mm	0.047 in	68 µH	Wirewound	Surface Mount	0.28 A	20 %	125 °C	-40 °C	Nonstandard	2.13 Ohm	0.205 "	5.2 mm	0.205 in	5.2 mm
Murata Power Solutions Inc. 34L152C	Shielded	1.2 mm	0.047 in	1.5 µH	Wirewound	Surface Mount	1.65 A	30 %	125 °C	-40 °C	Nonstandard	85 mOhm	0.205 "	5.2 mm	0.205 in	5.2 mm
Murata Power Solutions Inc. 34L104C	Shielded	1.2 mm	0.047 in	100 µH	Wirewound	Surface Mount	0.24 A	20 %	125 °C	-40 °C	Nonstandard	3.33 Ohm	0.205 "	5.2 mm	0.205 in	5.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

LCSC	Piece	1	$ 2.72
		200	$ 1.09
		500	$ 1.05
		1000	$ 1.03

Description

General part information

34L Series

47 µH Shielded Wirewound Inductor 310 mA 1.82Ohm Max Nonstandard

Documents

Technical documentation and resources

Power Magnetics Selection Guide

Datasheet
