Q-3401A00051.5M

Active

Amphenol Custom Cable

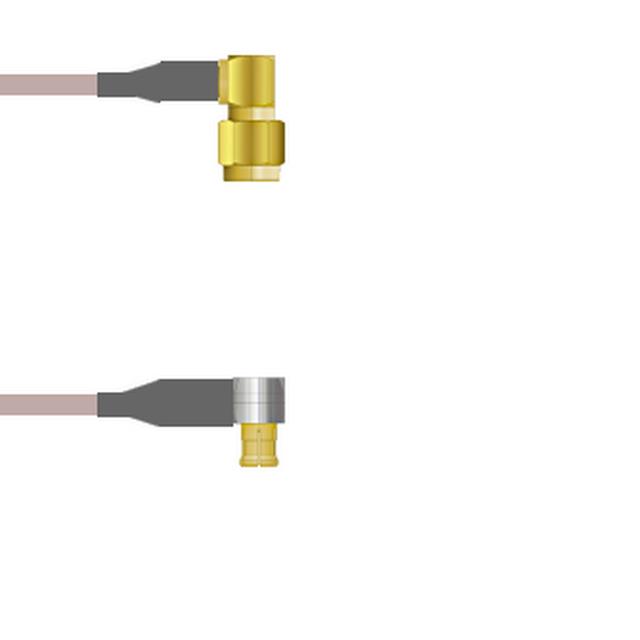

CBL ASSY SMA-MCX PLUG-PLUG 4.9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-3401A00051.5M

Active

Amphenol Custom Cable

CBL ASSY SMA-MCX PLUG-PLUG 4.9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-3401A00051.5M

1st Connector	SMA Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	MCX Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-316
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	59.1 in
Length	4.9 ft
Length	1.5 m
Overall Impedance	50 Ohms
Style	SMA to MCX

Q-3401A0 Series

Part	Features	1st Connector	1st Connector Mounting Type	Length	Length	Length	Color	Overall Impedance	2nd Connector	Cable Impedance	Style	Frequency - Max [Max]	Connector Impedance	2nd Contact Gender	Cable Type	2nd Connector Mounting Type	1st Contact Gender	Length [x]	Length [x]
Amphenol Custom Cable Q-3401A0003048I	Shielded	Right Angle SMA Plug	Free Hanging (In-Line)	1200 mm	4 ft	48 in	Black	50 Ohms	MCX Plug Right Angle	50 Ohms	SMA to MCX	1 GHz	50 Ohms	Male	RG-174	Free Hanging (In-Line)	Male
Amphenol Custom Cable Q-3401A00051.5M	Shielded	Right Angle SMA Plug	Free Hanging (In-Line)	1.5 m	4.9 ft	59.1 in	Copper	50 Ohms	MCX Plug Right Angle	50 Ohms	SMA to MCX	3 GHz	50 Ohms	Male	RG-316	Free Hanging (In-Line)	Male
Amphenol Custom Cable Q-3401A0005.25M	Shielded	Right Angle SMA Plug	Free Hanging (In-Line)				Copper	50 Ohms	MCX Plug Right Angle	50 Ohms	SMA to MCX	3 GHz	50 Ohms	Male	RG-316	Free Hanging (In-Line)	Male	9.843 "	250 mm
Amphenol Custom Cable Q-3401A00052.5M	Shielded	Right Angle SMA Plug	Free Hanging (In-Line)	2.5 m	8.2 '	98.4 in	Copper	50 Ohms	MCX Plug Right Angle	50 Ohms	SMA to MCX	3 GHz	50 Ohms	Male	RG-316	Free Hanging (In-Line)	Male
Amphenol Custom Cable Q-3401A0005012I	Shielded	Right Angle SMA Plug	Free Hanging (In-Line)	304.8 mm		12 "	Copper	50 Ohms	MCX Plug Right Angle	50 Ohms	SMA to MCX	3 GHz	50 Ohms	Male	RG-316	Free Hanging (In-Line)	Male
Amphenol Custom Cable Q-3401A0003003I	Shielded	Right Angle SMA Plug	Free Hanging (In-Line)	76.2 mm		3 in	Black	50 Ohms	MCX Plug Right Angle	50 Ohms	SMA to MCX	1 GHz	50 Ohms	Male	RG-174	Free Hanging (In-Line)	Male
Amphenol Custom Cable Q-3401A0005048I	Shielded	Right Angle SMA Plug	Free Hanging (In-Line)	1200 mm	4 ft	48 in	Copper	50 Ohms	MCX Plug Right Angle	50 Ohms	SMA to MCX	3 GHz	50 Ohms	Male	RG-316	Free Hanging (In-Line)	Male
Amphenol Custom Cable Q-3401A00030.5M	Shielded	Right Angle SMA Plug	Free Hanging (In-Line)	50 cm		19.69 "	Black	50 Ohms	MCX Plug Right Angle	50 Ohms	SMA to MCX	1 GHz	50 Ohms	Male	RG-174	Free Hanging (In-Line)	Male
Amphenol Custom Cable Q-3401A0005072I	Shielded	Right Angle SMA Plug	Free Hanging (In-Line)	1.8 m	6 ft	72 in	Copper	50 Ohms	MCX Plug Right Angle	50 Ohms	SMA to MCX	3 GHz	50 Ohms	Male	RG-316	Free Hanging (In-Line)	Male
Amphenol Custom Cable Q-3401A0003108I	Shielded	Right Angle SMA Plug	Free Hanging (In-Line)	2.7 m	9 ft	108 in	Black	50 Ohms	MCX Plug Right Angle	50 Ohms	SMA to MCX	1 GHz	50 Ohms	Male	RG-174	Free Hanging (In-Line)	Male

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 92.46
		25	$ 86.10
		50	$ 79.74
		100	$ 74.28
		250	$ 69.74

Description

General part information

Q-3401A0 Series

Cable Assembly Coaxial SMA to MCX RG-316 59.1" (1.5m) 4.9'

Documents

Technical documentation and resources

No documents available
