521011-2
ActiveTE Connectivity Raychem Cable Protection

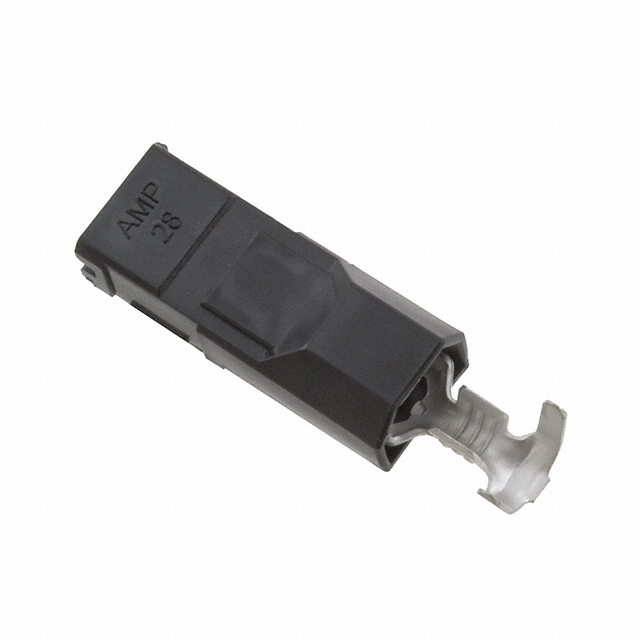

ULTRA-POD 250 ASSY REC 18-14 AWG TPBR
Deep-Dive with AI
Search across all available documentation for this part.
521011-2
ActiveTE Connectivity Raychem Cable Protection
ULTRA-POD 250 ASSY REC 18-14 AWG TPBR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 521011-2 |
|---|---|
| Color | Black |
| Contact Finish | Tin |
| Contact Material | Brass |
| Gender | Female |
| Insulation | Fully Insulated |
| Insulation Diameter [Max] [diameter] | 0.17 " |
| Insulation Diameter [Max] [diameter] | 4.32 mm |
| Insulation Diameter [Min] [diameter] | 2.79 mm |
| Insulation Diameter [Min] [diameter] | 0.11 " |
| Length - Overall | 34.67 mm |
| Length - Overall [x] | 1.365 in |
| Mounting Type | Free Hanging (In-Line) |
| Tab Thickness | 0.032 in |
| Tab Thickness | 0.81 mm |
| Tab Width | 6.35 mm |
| Tab Width | 0.25 in |
| Terminal Type | Standard |
| Termination | Crimp |
| Wire Gauge [Max] | 18 AWG |
| Wire Gauge [Min] | 14 AWG |
Ultra-Pod 250 Series
| Part | Tab Thickness | Tab Thickness | Terminal Type | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Color | Gender | Contact Finish | Termination | Insulation | Length - Overall [x] | Length - Overall [x] | Wire Gauge [Min] | Wire Gauge [Max] | Mounting Type | Contact Material | Tab Width | Tab Width | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation Diameter [Min] | Insulation Diameter [Max] | Length - Overall |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | 0.032 in | 0.81 mm | Standard | 3.3 mm | 0.18 in | 0.13 in | 4.57 mm | Natural | Female | Tin | Crimp | Fully Insulated | 1.37 in | 34.8 mm | 10 AWG | 14 AWG | Free Hanging (In-Line) | Brass | 6.35 mm | 0.25 in | |||||||
TE Connectivity Raychem Cable Protection | 0.032 in | 0.81 mm | Angled - 90° Flag | Natural | Female | Tin | Crimp | Fully Insulated | 17.5 AWG | 22 AWG | Free Hanging (In-Line) Right Angle | Brass | 6.35 mm | 0.25 in | 1.27 mm | 2.54 mm | 2.54 mm | 1.27 mm | |||||||||
TE Connectivity Raychem Cable Protection | 0.032 in | 0.81 mm | Angled - 90° Flag | Natural | Female | Tin | Crimp | Fully Insulated | 14 AWG | 18 AWG | Free Hanging (In-Line) Right Angle | Brass | 6.35 mm | 0.25 in | 4.06 mm | 2.79 mm | 0.11 in | 0.16 in | |||||||||
TE Connectivity Raychem Cable Protection | 0.032 in | 0.81 mm | Standard | 2.79 mm | 0.17 " | 0.11 " | 4.32 mm | Natural | Female | Tin | Crimp | Fully Insulated | 1.366 " | 34.7 mm | 14 AWG | 18 AWG | Free Hanging (In-Line) | Brass | 6.35 mm | 0.25 in | |||||||
TE Connectivity Raychem Cable Protection | 0.032 in | 0.81 mm | Standard | 3.3 mm | 0.18 in | 0.13 in | 4.57 mm | Natural | Female | Crimp | Fully Insulated | 1.37 in | 34.8 mm | 10 AWG | 14 AWG | Free Hanging (In-Line) | Brass | 6.35 mm | 0.25 in | ||||||||
TE Connectivity Raychem Cable Protection | 0.032 in | 0.81 mm | Angled - 90° Flag | Black | Female | Nickel | Crimp | Fully Insulated | 14 AWG | 18 AWG | Free Hanging (In-Line) Right Angle | Steel | 6.35 mm | 0.25 in | 4.06 mm | 2.79 mm | 0.11 in | 0.16 in | |||||||||
TE Connectivity Raychem Cable Protection | 0.032 in | 0.81 mm | Standard | 2.79 mm | 0.17 " | 0.11 " | 4.32 mm | Black | Female | Tin | Crimp | Fully Insulated | 1.365 in | 14 AWG | 18 AWG | Free Hanging (In-Line) | Brass | 6.35 mm | 0.25 in | 34.67 mm | |||||||
TE Connectivity Raychem Cable Protection | 0.032 in | 0.81 mm | Standard | 2.79 mm | 0.17 " | 0.11 " | 4.32 mm | Black | Female | Nickel | Crimp | Fully Insulated | 1.365 in | 14 AWG | 18 AWG | Free Hanging (In-Line) | Steel | 6.35 mm | 0.25 in | 34.67 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.39 | |
| 10 | $ 0.35 | |||
| 25 | $ 0.35 | |||
| 50 | $ 0.35 | |||
| 100 | $ 0.30 | |||
| 250 | $ 0.27 | |||
| 500 | $ 0.25 | |||
| 1000 | $ 0.22 | |||
| Tape & Reel (TR) | 2000 | $ 0.22 | ||
| 4000 | $ 0.22 | |||
| 6000 | $ 0.20 | |||
| 10000 | $ 0.18 | |||
Description
General part information
Ultra-Pod 250 Series
Quick Disconnect Receptacle, 18 – 14 AWG, .82 – 2.08 mm² Wire, 6.35 mm [.25 in] Tab Width, Straight, Brass, Tin Plating, Strip/Reel, Ultra-Pod 250
