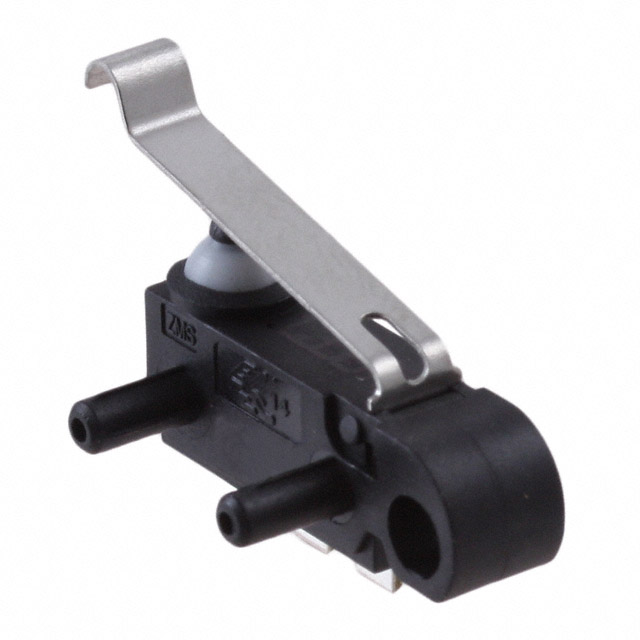

ZMSMH3130T11SRC

Active

Littelfuse/Commercial Vehicle Products

SWITCH SNAP ACTION SPDT 3A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet zmsm +1

ZMSMH3130T11SRC

Active

Littelfuse/Commercial Vehicle Products

SWITCH SNAP ACTION SPDT 3A 125V

Deep-Dive with AI

DocumentsDatasheet zmsm +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZMSMH3130T11SRC

Actuator Type	Simulated Roller, Lever
Circuit	SPDT
Current Rating (Amps)	3 A
Differential Travel	0.027 "
Differential Travel	0.7 mm
Electrical Life	100000 Cycles
Features	Support Posts
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mounting Type	Chassis Mount
Operating Position	0.39 in
Operating Position	9.9 mm
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Overtravel	2.57 mm
Overtravel	0.101 "
Pretravel	0.188 in
Pretravel	4.8 mm
Release Force	45 gf
Switch Function	On-Mom
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	12 V

Zmsm0 Series Series

Mini Size Snap-acting Switch

Part	Switch Function	Electrical Life	Overtravel	Overtravel	Actuator Type	Current Rating (Amps)	Differential Travel	Differential Travel	Ingress Protection	Features	Pretravel	Pretravel	Voltage Rating - AC	Mounting Type	Operating Force	Voltage Rating - DC	Operating Position	Operating Position	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Circuit	Release Force
Littelfuse/Commercial Vehicle Products ZMSMH3130P00PLC	On-Mom	100000 Cycles	1.7 mm	0.065 in	Round (Pin Plunger)	3 A	0.012 "	0.3 mm	IP65 - Dust Tight Water Resistant	Support Posts	0.03 in	0.8 mm	125 V	Through Hole	130 gf	12 V	0.266 in	6.75 mm	85 °C	-40 °C	PC Pin	SPDT	13 gf
Littelfuse/Commercial Vehicle Products ZMSMH3130T10SMC	On-Mom	100000 Cycles	2.14 mm	0.084 "	Lever Straight	3 A	0.02 in	0.5 mm	IP65 - Dust Tight Water Resistant		0.152 in	3.85 mm	125 V	Chassis Mount	195 gf	12 V	0.295 in	7.5 mm	85 °C	-40 °C	Solder Lug	SPDT	55 gf
Littelfuse/Commercial Vehicle Products ZMSMH0130P00SMC	On-Mom	300000 Cycles	1.7 mm	0.065 in	Round (Pin Plunger)	100 mA	0.012 "	0.3 mm	IP65 - Dust Tight Water Resistant		0.03 in	0.8 mm		Chassis Mount	130 gf	12 V	0.266 in	6.75 mm	85 °C	-40 °C	Solder Lug	SPDT	13 gf
Littelfuse/Commercial Vehicle Products ZMSMH0130P00PLC	On-Mom	300000 Cycles	1.7 mm	0.065 in	Round (Pin Plunger)	100 mA	0.012 "	0.3 mm	IP65 - Dust Tight Water Resistant	Support Posts	0.03 in	0.8 mm		Through Hole	130 gf	12 V	0.266 in	6.75 mm	85 °C	-40 °C	PC Pin	SPDT	13 gf
Littelfuse/Commercial Vehicle Products ZMSMH3130T11SRC	On-Mom	100000 Cycles	2.57 mm	0.101 "	Lever Simulated Roller	3 A	0.027 "	0.7 mm	IP65 - Dust Tight Water Resistant	Support Posts	0.188 in	4.8 mm	125 V	Chassis Mount		12 V	0.39 in	9.9 mm	85 °C	-40 °C	Solder Lug	SPDT	45 gf
Littelfuse/Commercial Vehicle Products ZMSMH3130T10SRC	On-Mom	100000 Cycles	2.14 mm	0.084 "	Lever Straight	3 A	0.02 in	0.5 mm	IP65 - Dust Tight Water Resistant	Support Posts	0.152 in	3.85 mm	125 V	Chassis Mount	195 gf	12 V	0.295 in	7.5 mm	85 °C	-40 °C	Solder Lug	SPDT	55 gf

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

Zmsm0 Series Series

The ZMSM series from C&K is a mini size snap-acting switch, perfect for use in communication devices, testing equipment and security or alarm systems. Designers turn to the ZMSM series because of its reliable snap-acting mechanism, long electrical and mechanical life, various PCB terminals and actuators and its compliance with regulations such as RoHS and IP67 (IP67 for standalone switch except the metal terminal part; Full IP67 protection when potted with wire version).
