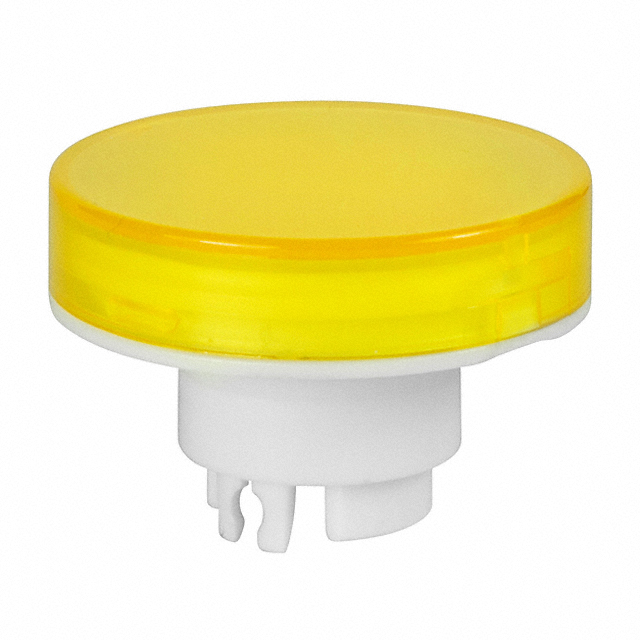

AT3017EB

Active

NKK Switches

CAP PUSHBUTTON ROUND YEL/WHITE

Search across all available documentation for this part.

Active

NKK Switches

CAP PUSHBUTTON ROUND YEL/WHITE

Technical Specifications

Parameters and characteristics for this part

Specification	AT3017EB

Color	Yellow, White
For Use With/Related Products	YB2 Series
Illumination	Illumination Optional
Mounting Type	Snap Fit
Shape	Round
Size [diameter]	19 mm
Size [z]	4.9 mm
Switch Type	Pushbutton

Part	Features	For Use With/Related Products	Illumination	Size [diameter]	Size [z]	Mounting Type	Shape	Switch Type	Color
NKK Switches AT3017HB-001	Power Symbol	YB2 Series	Illumination Optional	19 mm	4.9 mm	Snap Fit	Round	Pushbutton	Gray White
NKK Switches AT3017EB		YB2 Series	Illumination Optional	19 mm	4.9 mm	Snap Fit	Round	Pushbutton	White Yellow
NKK Switches AT3017HB-002	START Symbol	YB2 Series	Illumination Optional	19 mm	4.9 mm	Snap Fit	Round	Pushbutton	Gray White
NKK Switches AT3017HB		YB2 Series	Illumination Optional	19 mm	4.9 mm	Snap Fit	Round	Pushbutton	Gray White
NKK Switches AT3017JB		YB2 Series	Illumination Optional	19 mm	4.9 mm	Snap Fit	Round	Pushbutton	Clear White
NKK Switches AT3017HB-004	STOP Symbol	YB2 Series	Illumination Optional	19 mm	4.9 mm	Snap Fit	Round	Pushbutton	Gray White

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Round Pushbutton Switch Cap Yellow, White Snap Fit
