R30-4000502

Active

Harwin Inc.

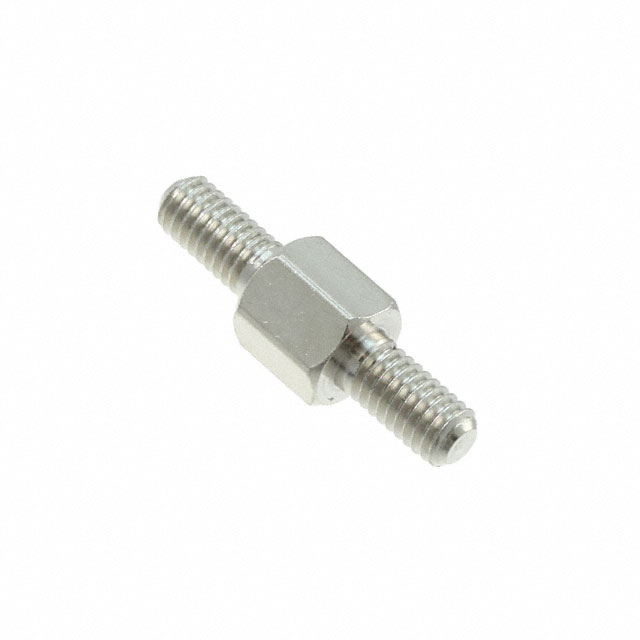

HEX STANDOFF M3X0.5 BRASS 5MM

Search across all available documentation for this part.

Active

Harwin Inc.

HEX STANDOFF M3X0.5 BRASS 5MM

Technical Specifications

Parameters and characteristics for this part

Part	Between Board Height	Between Board Height	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Threaded/Unthreaded	Length - Overall [x]	Length - Overall [x]	Gender	Material	Plating	Type	Screw, Thread Size	Between Board Height [z]	Between Board Height [z]	Length - Overall	Length - Overall
Harwin Inc. R30-4000402	4 mm	0.157 in	0.217 in	5.5 mm	Threaded	0.63 "	16 mm	Male	Brass	Nickel	Hex Standoff	M3x0.5
Harwin Inc. R30-4001602			0.217 in	5.5 mm	Threaded			Male	Brass	Nickel	Hex Standoff	M3x0.5	16 mm	0.63 in
Harwin Inc. R30-4003002	30 mm	1.181 in	0.217 in	5.5 mm	Threaded	1.654 in	42 mm	Male	Brass	Nickel	Hex Standoff	M3x0.5
Harwin Inc. R30-4000902	9 mm	0.354 in	0.217 in	5.5 mm	Threaded	0.827 in	21 mm	Male	Brass	Nickel	Hex Standoff	M3x0.5
Harwin Inc. R30-4000802			0.217 in	5.5 mm	Threaded	0.787 "	20 mm	Male	Brass	Nickel	Hex Standoff	M3x0.5	8 mm	0.315 in
Harwin Inc. R30-4002502	25 mm	0.984 in	0.217 in	5.5 mm	Threaded	1.457 in	37 mm	Male	Brass	Nickel	Hex Standoff	M3x0.5
Harwin Inc. R30-4000502	5 mm	0.197 in	0.197 in	5 mm	Threaded			Male	Brass	Nickel	Hex Standoff	M3x0.5			17 mm	0.669 in
Harwin Inc. R30-4001202	12 mm	0.472 in	0.217 in	5.5 mm	Threaded	0.945 in	24 mm	Male	Brass	Nickel	Hex Standoff	M3x0.5
Harwin Inc. R30-4002002	20 mm	0.787 in	0.217 in	5.5 mm	Threaded	1.26 in	32 mm	Male	Brass	Nickel	Hex Standoff	M3x0.5

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hex Standoff Threaded M3x0.5 Brass 0.197" (5.00mm)
