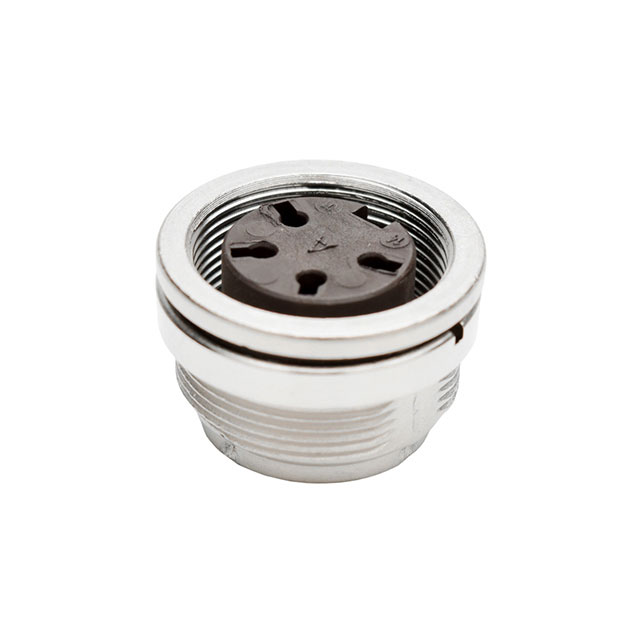

C091 11N004 000 2

Active

Amphenol Tuchel Industrial

CONN RCPT HSNG FMALE 4POS PNL MT

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN RCPT HSNG FMALE 4POS PNL MT

Technical Specifications

Parameters and characteristics for this part

Specification	C091 11N004 000 2

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	1.5 mm
Contact Type	Crimp
Housing Color	Silver
Ingress Protection	IP69K, IP65, IP67
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Note	Contacts Not Included
Number of Positions	4
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Die Cast
Shell Size - Insert	M16-4
Shielding	Shielded
Type	For Female Sockets

Part	Mounting Feature	Connector Type	Material Flammability Rating	Shell Finish	Insert Material	Contact Type	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Shell Size - Insert	Shielding	Contact Shape	Note	Shell Material	Number of Positions	Contact Size	Ingress Protection	Type
Amphenol Tuchel Industrial C091 11N004 000 2	Bulkhead - Rear Side Nut	Receptacle Housing	UL94 V-0	Nickel	Thermoplastic	Crimp	Keyed	100 °C	-40 °C	Silver	M16-4	Shielded	Circular	Contacts Not Included	Die Cast	4	1.5 mm	IP65 IP67 IP69K	For Female Sockets

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle Housing Panel Mount
