EDZ1110/11

Active

On Shore Technology Inc.

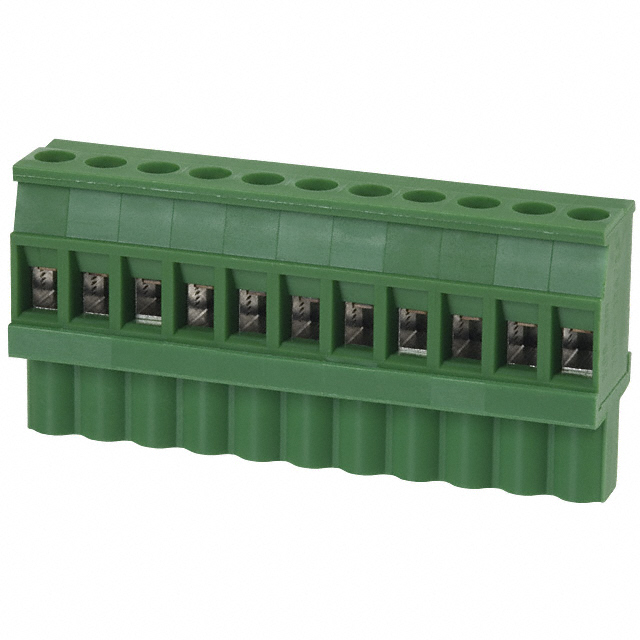

TERM BLOCK PLUG 11POS 5.08MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsED Part Number Breakdown Datasheet

EDZ1110/11

Active

On Shore Technology Inc.

TERM BLOCK PLUG 11POS 5.08MM

Deep-Dive with AI

DocumentsED Part Number Breakdown Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EDZ1110/11

Color	Green
Contact Material	Copper Tin Alloy
Housing Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	11
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Positions Per Level	11
Termination Style	Screw
Torque - Screw	4.4 Lb-In
Torque - Screw	0.5 Nm
Type	Plug, Female Sockets
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	22 AWG
Wire Gauge or Range - AWG [Min]	10 AWG
Wire Gauge or Range - mm˛	2.5 mm˛
Wire Strip Length	7 mm

EDZ1110 Series

Part	Type	Operating Temperature [Min]	Operating Temperature [Max]	Torque - Screw	Torque - Screw	Wire Gauge or Range - mm˛	Number of Levels	Pitch [x]	Pitch [x]	Color	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Termination Style	Contact Material	Voltage - UL	Positions Per Level	Number of Positions	Mounting Type	Wire Strip Length	Housing Material	Material Flammability Rating	Number of Positions
On Shore Technology Inc. EDZ1110/16	Plug Female Sockets	-30 ░C	105 ░C	4.4 Lb-In	0.5 Nm	2.5 mm˛	1	0.2 in	5.08 mm	Green	22 AWG	10 AWG	Screw	Copper Tin Alloy	300 V	16	16	Free Hanging (In-Line)	7 mm	Polyamide (PA) Nylon	UL94 V-0
On Shore Technology Inc. EDZ1110/6	Plug Female Sockets	-30 ░C	105 ░C	4.4 Lb-In	0.5 Nm	2.5 mm˛	1	0.2 in	5.08 mm	Green	22 AWG	10 AWG	Screw	Copper Tin Alloy	300 V	6		Free Hanging (In-Line)	7 mm	Polyamide (PA) Nylon	UL94 V-0	6
On Shore Technology Inc. EDZ1110/9	Plug Female Sockets	-30 ░C	105 ░C	4.4 Lb-In	0.5 Nm	2.5 mm˛	1	0.2 in	5.08 mm	Green	22 AWG	10 AWG	Screw	Copper Tin Alloy	300 V	9		Free Hanging (In-Line)	7 mm	Polyamide (PA) Nylon	UL94 V-0	9
On Shore Technology Inc. EDZ1110/3	Plug Female Sockets	-30 ░C	105 ░C	4.4 Lb-In	0.5 Nm	2.5 mm˛	1	0.2 in	5.08 mm	Green	22 AWG	10 AWG	Screw	Copper Tin Alloy	300 V	3		Free Hanging (In-Line)	7 mm	Polyamide (PA) Nylon	UL94 V-0
On Shore Technology Inc. EDZ1110/14	Plug Female Sockets	-30 ░C	105 ░C	4.4 Lb-In	0.5 Nm	2.5 mm˛	1	0.2 in	5.08 mm	Green	22 AWG	10 AWG	Screw	Copper Tin Alloy	300 V	14		Free Hanging (In-Line)	7 mm	Polyamide (PA) Nylon	UL94 V-0	14
On Shore Technology Inc. EDZ1110/11	Plug Female Sockets	-30 ░C	105 ░C	4.4 Lb-In	0.5 Nm	2.5 mm˛	1	0.2 in	5.08 mm	Green	22 AWG	10 AWG	Screw	Copper Tin Alloy	300 V	11		Free Hanging (In-Line)	7 mm	Polyamide (PA) Nylon	UL94 V-0	11
On Shore Technology Inc. EDZ1110/10	Plug Female Sockets	-30 ░C	105 ░C	4.4 Lb-In	0.5 Nm	2.5 mm˛	1	0.2 in	5.08 mm	Green	22 AWG	10 AWG	Screw	Copper Tin Alloy	300 V	10		Free Hanging (In-Line)	7 mm	Polyamide (PA) Nylon	UL94 V-0	10

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.70
		10	$ 9.17
		25	$ 8.75
		50	$ 7.86
		100	$ 7.44
		300	$ 6.75
		500	$ 6.28
		1000	$ 5.93

Description

General part information

EDZ1110 Series

11 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) Free Hanging (In-Line)
