A15754-12

Active

Laird Technologies - Thermal Materials

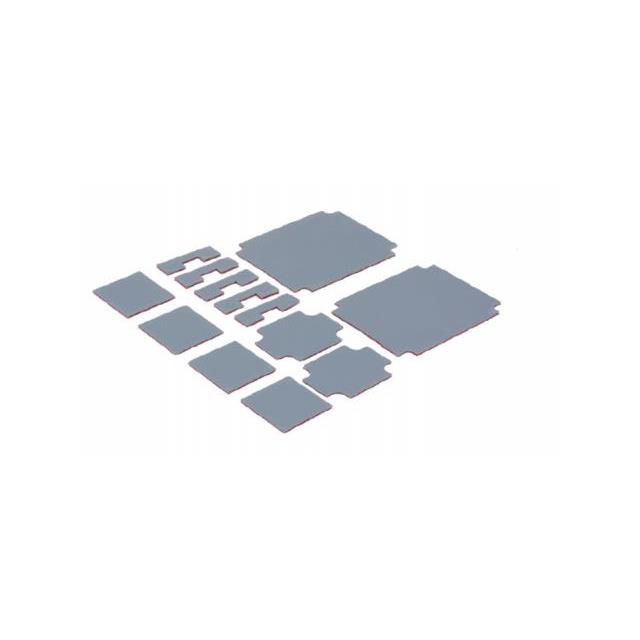

THERM PAD 228.6MMX228.6MM GRAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A15754-12

Active

Laird Technologies - Thermal Materials

THERM PAD 228.6MMX228.6MM GRAY

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A15754-12

Adhesive	Tacky - Both Sides
Color	Gray
Material	Non-Silicone
Outline [x]	228.6 mm
Outline [y]	228.6 mm
Shape	Square
Shelf Life	24 Months
Thermal Conductivity	7.8 W/m-K
Thermal Resistivity	0.19 °C/W
Thickness	0.12 in
Thickness	3.05 mm
Type	Gap Filler Pad, Sheet

A15754 Series

Part	Material	Shelf Life	Adhesive	Shape	Color	Thermal Resistivity	Thickness	Thickness	Thermal Conductivity	Type	Outline [x]	Outline [y]
Laird Technologies - Thermal Materials A15754-14	Non-Silicone	24 Months	Tacky - Both Sides	Square	Gray	0.19 °C/W	0.14 in	3.56 mm	7.8 W/m-K	Gap Filler Pad Sheet	228.6 mm	228.6 mm
Laird Technologies - Thermal Materials A15754-15	Non-Silicone	24 Months	Tacky - Both Sides	Square	Gray	0.19 °C/W	0.15 in	3.81 mm	7.8 W/m-K	Gap Filler Pad Sheet	228.6 mm	228.6 mm
Laird Technologies - Thermal Materials A15754-08	Non-Silicone	24 Months	Tacky - Both Sides	Square	Gray	0.19 °C/W	0.08 "	80 mils	7.8 W/m-K	Gap Filler Pad Sheet	228.6 mm	228.6 mm
Laird Technologies - Thermal Materials A15754-05	Non-Silicone	24 Months	Tacky - Both Sides	Square	Gray	0.19 °C/W	0.05 in	50 mils	7.8 W/m-K	Gap Filler Pad Sheet	228.6 mm	228.6 mm
Laird Technologies - Thermal Materials A15754-10	Non-Silicone	24 Months	Tacky - Both Sides	Square	Gray	0.19 °C/W	0.1 in	2.54 mm	7.8 W/m-K	Gap Filler Pad Sheet	228.6 mm	228.6 mm
Laird Technologies - Thermal Materials A15754-06	Non-Silicone	24 Months	Tacky - Both Sides	Square	Gray	0.19 °C/W	0.06 in	1.524 mm	7.8 W/m-K	Gap Filler Pad Sheet	228.6 mm	228.6 mm
Laird Technologies - Thermal Materials A15754-03	Non-Silicone	24 Months	Tacky - Both Sides	Square	Gray	0.19 °C/W	0.03 in	0.762 mm	7.8 W/m-K	Gap Filler Pad Sheet	228.6 mm	228.6 mm
Laird Technologies - Thermal Materials A15754-12	Non-Silicone	24 Months	Tacky - Both Sides	Square	Gray	0.19 °C/W	0.12 in	3.05 mm	7.8 W/m-K	Gap Filler Pad Sheet	228.6 mm	228.6 mm
Laird Technologies - Thermal Materials A15754-16	Non-Silicone	24 Months	Tacky - Both Sides	Square	Gray	0.19 °C/W	0.16 in	4.06 mm	7.8 W/m-K	Gap Filler Pad Sheet	228.6 mm	228.6 mm
Laird Technologies - Thermal Materials A15754-09	Non-Silicone	24 Months	Tacky - Both Sides	Square	Gray	0.19 °C/W	0.09 in	2.286 mm	7.8 W/m-K	Gap Filler Pad Sheet	228.6 mm	228.6 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 327.32
		10	$ 305.50
		25	$ 283.67

Description

General part information

A15754 Series

Thermal Pad Gray 228.60mm x 228.60mm Square Tacky - Both Sides
