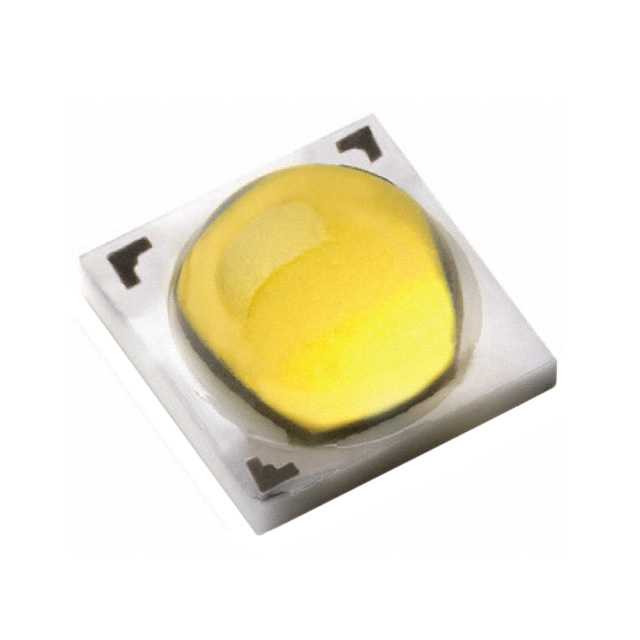

LXH7-FW50
ObsoleteLumileds
LED LUXEON COOL WHITE 5000K 3SMD
Deep-Dive with AI
Search across all available documentation for this part.
LXH7-FW50
ObsoleteLumileds
LED LUXEON COOL WHITE 5000K 3SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LXH7-FW50 |
|---|---|
| CCT (K) | 5000 K |
| Color | Cool, White |
| CRI (Color Rendering Index) | 70 |
| Current - Max [Max] | 1.2 A |
| Flux @ 85°C, Current - Test | 255 lm |
| Height - Seated (Max) [Max] | 2.12 mm |
| Height - Seated (Max) [Max] | 0.083 in |
| Lumens/Watt @ Current - Test | 130 lm/W |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, No Lead Exposed Pad |
| Size / Dimension [x] | 3.7 mm |
| Size / Dimension [x] | 0.146 in |
| Size / Dimension [y] | 0.146 " |
| Size / Dimension [y] | 3.7 mm |
| Thermal Resistance of Package [diameter] | 3 °C/W |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 2.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.86 | |
| 10 | $ 1.61 | |||
| 100 | $ 1.46 | |||
| 500 | $ 1.40 | |||
| Digi-Reel® | 1 | $ 1.86 | ||
| 10 | $ 1.61 | |||
| 100 | $ 1.46 | |||
| 500 | $ 1.40 | |||
Description
General part information
LXH7 Series
LED Lighting LUXEON T White, Cool 5000K 2.8V 700mA 120° 2-SMD, No Lead Exposed Pad
