SDF-S25-203L011

Active

MH Connectors

D SUB CONNECTOR, IP67, STANDARD, RECEPTACLE, NANOOK SERIES, 25 CONTACTS, DB, SOLDER CUP

Search across all available documentation for this part.

Active

MH Connectors

D SUB CONNECTOR, IP67, STANDARD, RECEPTACLE, NANOOK SERIES, 25 CONTACTS, DB, SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	SDF-S25-203L011

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Flange Feature	Female Screwlock (4-40), Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3

Part	Contact Material	Dielectric Material	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Material Flammability Rating	Shell Material, Finish	Connector Style	Contact Finish	Ingress Protection	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Color	Number of Rows	Flange Feature	Current Rating (Amps)	Connector Type	Contact Finish Thickness	Features	Contact Finish Thickness	Contact Finish Thickness
MH Connectors SDF-S25-203L011	Brass	Polybutylene Terephthalate (PBT)	B DB	3	UL94 V-0	Nickel Plated Steel	D-Sub	Gold	IP67 - Dust Tight Waterproof	Signal	-25 °C	85 °C	Black	2	Female Screwlock (4-40) Mating Side	5 A	Receptacle Female Sockets	Flash
MH Connectors SDF-S25-103L011	Brass	Polybutylene Terephthalate (PBT)	B DB	3	UL94 V-0	Nickel Plated Steel	D-Sub	Gold	IP67 - Dust Tight Waterproof	Signal	-25 °C	85 °C	Black	2	Female Screwlock (4-40) Mating Side	5 A	Male Pins Plug	Flash	Grounding Indents
MH Connectors SDF-S25-103L012	Brass	Polybutylene Terephthalate (PBT)	B DB	3	UL94 V-0	Nickel Plated Steel	D-Sub	Gold	IP67 - Dust Tight Waterproof	Signal	-25 °C	85 °C	Black	2	Female Screwlock (4-40) Mating Side	5 A	Male Pins Plug		Grounding Indents	0.76 Ám	30 Áin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

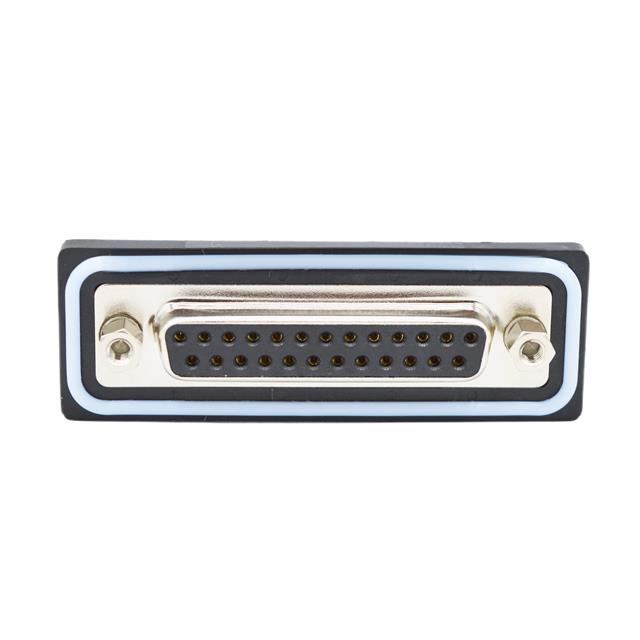

25 Position D-Sub Receptacle, Female Sockets Connector
