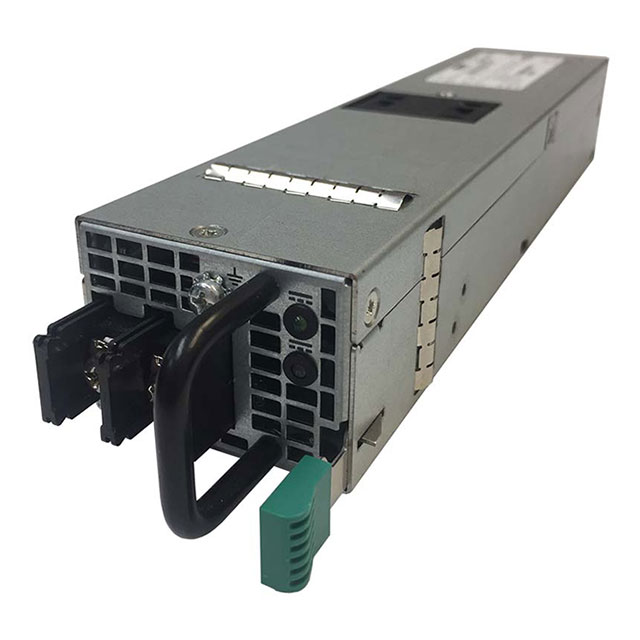

D1U54-D-650-12-HB4C

Active

Murata Power Solutions Inc.

FRONT END - RACK MOUNT DC/DC CONVERTER, HIGH EFFICIENCY, ITE, 2:1, 650 W, 1 OUTPUT, 12 V, 54.2 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Product Change Notice EN +1

D1U54-D-650-12-HB4C

Active

Murata Power Solutions Inc.

FRONT END - RACK MOUNT DC/DC CONVERTER, HIGH EFFICIENCY, ITE, 2:1, 650 W, 1 OUTPUT, 12 V, 54.2 A

Deep-Dive with AI

DocumentsDatasheet Product Change Notice EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D1U54-D-650-12-HB4C

Applications	ITE (Commercial)
Approval Agency	CB, TUV, CE, cCSAus
Current - Output (Max) [Max]	54.2 A
Efficiency	92 %
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	650 W
Size / Dimension [x]	228.6 mm
Size / Dimension [x]	9 in
Size / Dimension [y]	54.5 mm
Size / Dimension [y]	2.15 "
Size / Dimension [z]	1.57 "
Size / Dimension [z]	40 mm
Type	Front End
Voltage - Input (Max) [Max]	-72 V
Voltage - Output 1	12 V

D1U54-D Series

Part	Applications	Number of Outputs	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Mounting Type	Approval Agency	Voltage - Isolation	Voltage - Output 1	Efficiency	Voltage - Input (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Type	Power (Watts)
Murata Power Solutions Inc. D1U54-D-1500-12-HB3C	ITE (Commercial)	1	12.66 in	2.15 "	1.57 "	54.5 mm	40 mm	321.5 mm	Rack Mount	CB cCSAus CE	1.5 kV	12 V	90 %	-40 V	-5 °C	45 °C	-72 V	125 A	Front End	1500 W
Murata Power Solutions Inc. D1U54-D-450-12-HA4C	ITE (Commercial)	1	9 in	2.15 "	1.57 "	54.5 mm	40 mm	228.6 mm	Rack Mount	CB CCC cCSAus CE TUV	1000 V	12 V	93 %		-5 °C	50 °C	-72 V	37.5 A	Front End	450 W
Murata Power Solutions Inc. D1U54-D-1500-12-HA3C	ITE (Commercial)	1	12.66 in	2.15 "	1.57 "	54.5 mm	40 mm	321.5 mm	Rack Mount	CB cCSAus CE	1.5 kV	12 V	90 %	-40 V	-5 °C	45 °C	-72 V	125 A	Front End	1500 W
Murata Power Solutions Inc. D1U54-D-1200-12-HA4PC	ITE (Commercial)	1	12.66 in	2.15 "	1.57 "	54.5 mm	40 mm	321.5 mm	Rack Mount	CB cCSAus CE		12 V	92 %	-40 V			-72 V	100 A	Front End	1200 W
Murata Power Solutions Inc. D1U54-D-1200-12-HC3PC	ITE (Commercial)	1	12.66 in	2.15 "	1.57 "	54.5 mm	40 mm	321.5 mm	Rack Mount	CB cCSAus CE		12 V	92 %	-40 V			-72 V	100 A	Front End	1200 W
Murata Power Solutions Inc. D1U54-D-1200-12-HC4PC	ITE (Commercial)	1	12.66 in	2.15 "	1.57 "	54.5 mm	40 mm	321.5 mm	Rack Mount	CB cCSAus CE		12 V	92 %	-40 V			-72 V	100 A	Front End	1200 W
Murata Power Solutions Inc. D1U54-D-1500-12-HC3C	ITE (Commercial)	1	12.66 in	2.15 "	1.57 "	54.5 mm	40 mm	321.5 mm	Rack Mount	CB cCSAus CE	1.5 kV	12 V	90 %	-40 V	-5 °C	45 °C	-72 V	125 A	Front End	1500 W
Murata Power Solutions Inc. D1U54-D-450-12-HB4C	ITE (Commercial)	1	9 in	2.15 "	1.57 "	54.5 mm	40 mm	228.6 mm	Rack Mount	CB cCSAus CE TUV		12 V	90 %		-5 °C	50 °C	-72 V	37.5 A	Front End	450 W
Murata Power Solutions Inc. D1U54-D-650-12-HB4C	ITE (Commercial)	1	9 in	2.15 "	1.57 "	54.5 mm	40 mm	228.6 mm	Chassis Mount	CB cCSAus CE TUV		12 V	92 %		-40 °C	70 °C	-72 V	54.2 A	Front End	650 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	50	$ 520.15
Newark	Each	50	$ 514.05

Description

General part information

D1U54-D Series

Front End DC DC Converter 1 Output 12V 54.2A -72V Input

Documents

Technical documentation and resources

Datasheet

Product Change Notice EN

Datasheet

EOL Notices EN

Datasheet
