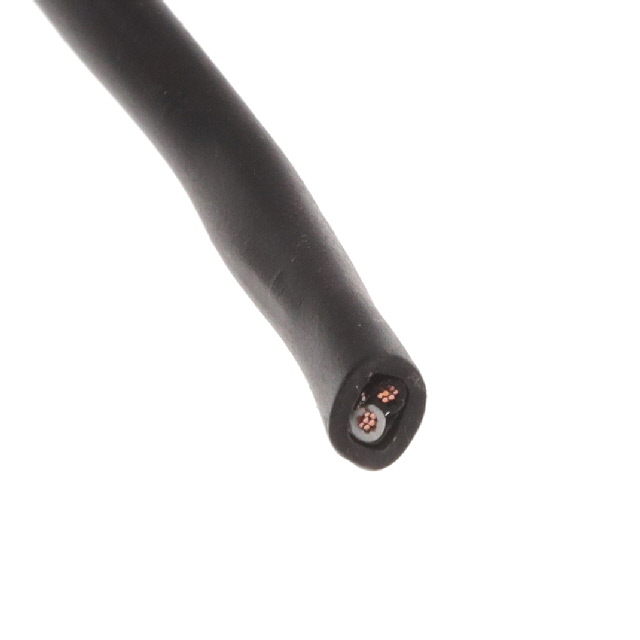

M9520010 BK002

Active

ALPHA WIRE

CABLE 2COND 20AWG BLK SHLD 500'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 2COND 20AWG BLK SHLD 500'

Technical Specifications

Parameters and characteristics for this part

Specification	M9520010 BK002

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	7
Conductor Strand [diameter]	0.0121 in
Features	Drain Wire, UV Resistant
Jacket (Insulation) Diameter [diameter]	0.219 in
Jacket (Insulation) Diameter [diameter]	5.56 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.038 in
Jacket (Insulation) Thickness	0.965 mm
Jacket Color	Black
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Control, Communication
Voltage	300 V
Wire Gauge	20 AWG

Part	Voltage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Cable Type	Jacket Color	Conductor Material	Shield Material	Usage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Shield Coverage	Operating Temperature [Min]	Operating Temperature [Max]	Number of Conductors	Conductor Strand [custom]	Conductor Strand [diameter]	Shield Type	Conductor Insulation	Features	Length [x]	Length [x]
ALPHA WIRE M9520010 BK002	300 V	0.038 in	0.965 mm	Poly-Vinyl Chloride (PVC)	Multi-Conductor	Black	Copper Bare	Aluminum	Communication Control	0.219 in	5.56 mm	20 AWG	100 %	-20 C	105 ░C	2	7	0.0121 in	Foil	Poly-Vinyl Chloride (PVC)	Drain Wire UV Resistant	500 '	152.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 (1 Pair Twisted) Conductor Multi-Conductor Cable Black 20 AWG Foil 500.0' (152.4m)
