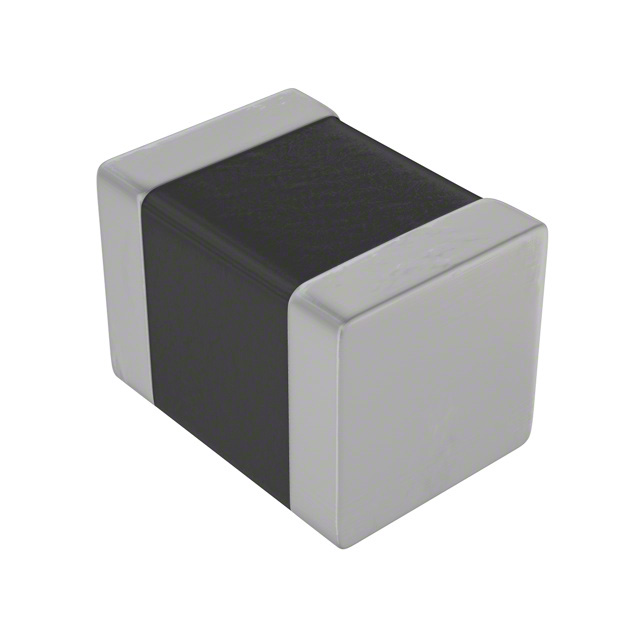

L1007C4R7MPWST
ObsoleteKEMET
FIXED IND 4.7UH 240MA 130MOHM SM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
L1007C4R7MPWST
ObsoleteKEMET
FIXED IND 4.7UH 240MA 130MOHM SM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | L1007C4R7MPWST |
|---|---|
| Current Rating (Amps) | 0.24 A |
| DC Resistance (DCR) | 130 mOhm |
| Height - Seated (Max) [Max] [z] | 2 mm |
| Height - Seated (Max) [Max] [z] | 0.079 in |
| Inductance | 4.7 ÁH |
| Inductance Frequency - Test | 7.96 MHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 2518 Metric |
| Package / Case | 1007 |
| Shielding | Unshielded |
| Size / Dimension [x] | 0.098 " |
| Size / Dimension [x] | 2.5 mm |
| Size / Dimension [y] | 0.071 in |
| Size / Dimension [y] | 1.8 mm |
| Supplier Device Package | 1007 (2518 Metric) |
| Tolerance | 20 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.20 | |
| 10 | $ 0.16 | |||
| 25 | $ 0.14 | |||
| 50 | $ 0.13 | |||
| 100 | $ 0.12 | |||
| 250 | $ 0.11 | |||
| 500 | $ 0.10 | |||
| 1000 | $ 0.09 | |||
Description
General part information
L1007C Series
4.7 µH Unshielded Drum Core, Wirewound Inductor 240 mA 130mOhm 1007 (2518 Metric)
