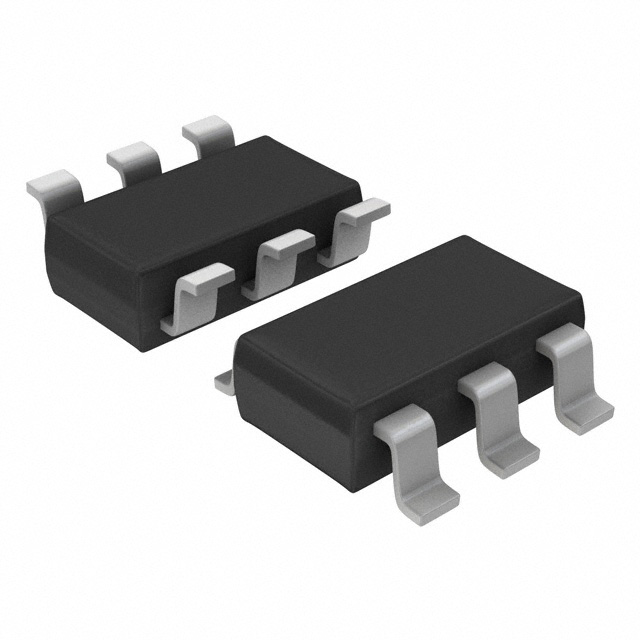

TVS4201MR6T1G
ActiveESD PROTECTION DEVICE, 12 V, TSOP, 6 PINS, 5 V, 5 PF
Deep-Dive with AI
Search across all available documentation for this part.
TVS4201MR6T1G
ActiveESD PROTECTION DEVICE, 12 V, TSOP, 6 PINS, 5 V, 5 PF
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TVS4201MR6T1G |
|---|---|
| Capacitance @ Frequency | 3 pF |
| Current - Peak Pulse (10/1000µs) | 25 A |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | TSOT-23-6, SOT-23-6 Thin |
| Power - Peak Pulse | 500 W |
| Power Line Protection | True |
| Qualification | AEC-Q101 |
| Supplier Device Package | 6-TSOP |
| Type | Steering |
| Unidirectional Channels [custom] | 4 |
| Voltage - Breakdown (Min) [Min] | 6 V |
| Voltage - Clamping (Max) @ Ipp | 12 V |
| Voltage - Reverse Standoff (Typ) | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
TVS4201 Series
The TVS4201MR6 transient voltage suppressor is designed to protect high speed data lines from ESD, EFT, and lightning surges.Protection for the Following IEC Standards: IEC 61000-4-2 (ESD) ±30 kV (Contact) IEC 61000-4-5 (Lightning) 25 A (8/20 s) Low Clamping Voltage Low Leakage UL Flammability Rating of 94 V-0 SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable These Devices are Pb-Free, Halogen Free/BFR Free and are RoHS Compliant
