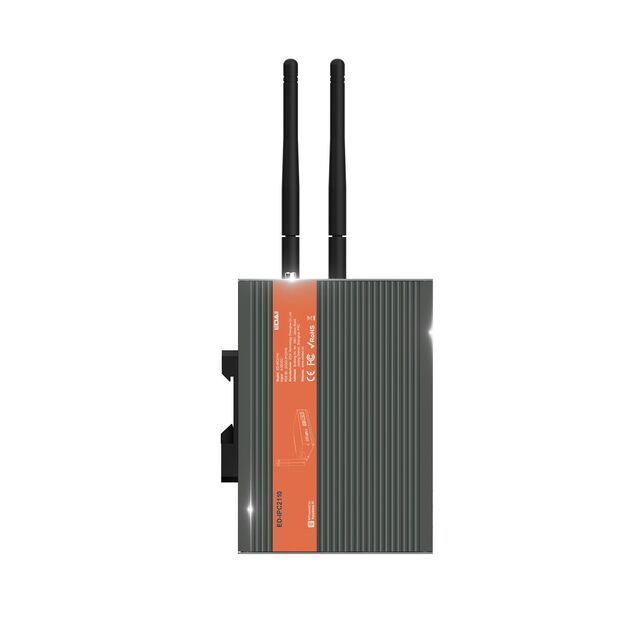

ED-IPC2110-1108

Active

EDATEC

SBC 1.5GHZ 4 CORE 1GB RAM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ED-IPC2110-1108

Active

EDATEC

SBC 1.5GHZ 4 CORE 1GB RAM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ED-IPC2110-1108

Cooling Type	Heat Sink
Core Processor	Raspberry Pi CM4 # CM4101008: ARM Cortex-A72
Ethernet	100 Mbps, 1000 Mbps, 10 Mbps
Form Factor	Desktop
Number of Cores	4
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	24 W
RS-232 (422, 485)	4
Size / Dimension [x]	5.63 in
Size / Dimension [x]	143 mm
Size / Dimension [y]	100 mm
Size / Dimension [y]	3.937 in
Size / Dimension [z]	35 mm
Size / Dimension [z]	1.378 "
Speed	1.5 GHz
Storage Interface	eMMC
USB	USB 2.0 (2), Micro USB (1)
Video Outputs	HDMI
Watchdog Timer	True

ED-IPC2110 Series

Part	Cooling Type	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Form Factor	USB	Speed	Video Outputs	Ethernet	RS-232 (422, 485)	Number of Cores	Power (Watts)	Storage Interface	Core Processor
EDATEC ED-IPC2110-1408	Heat Sink	-25 °C	60 °C	5.63 in	35 mm	100 mm	1.378 "	3.937 in	143 mm	Desktop	Micro USB (1) USB 2.0 (2)	1.5 GHz	HDMI	10 Mbps 100 Mbps 1000 Mbps	4	4	24 W	eMMC
EDATEC ED-IPC2110-1832	Heat Sink	-25 °C	60 °C	5.63 in	35 mm	100 mm	1.378 "	3.937 in	143 mm	Desktop	Micro USB (1) USB 2.0 (2)	1.5 GHz	HDMI	10 Mbps 100 Mbps 1000 Mbps	4	4	24 W	eMMC	Raspberry Pi CM4 # CM4108032: ARM Cortex-A72
EDATEC ED-IPC2110-1208	Heat Sink	-25 °C	60 °C	5.63 in	35 mm	100 mm	1.378 "	3.937 in	143 mm	Desktop	Micro USB (1) USB 2.0 (2)	1.5 GHz	HDMI	10 Mbps 100 Mbps 1000 Mbps	4	4	24 W	eMMC	Raspberry Pi CM4 # CM4102008: ARM Cortex-A72
EDATEC ED-IPC2110-14084US	Heat Sink	-25 °C	60 °C	5.63 in	35 mm	100 mm	1.378 "	3.937 in	143 mm	Desktop	Micro USB (1) USB 2.0 (2)	1.5 GHz	HDMI	10 Mbps 100 Mbps 1000 Mbps	4	4	24 W	eMMC
EDATEC ED-IPC2110-1216	Heat Sink	-25 °C	60 °C	5.63 in	35 mm	100 mm	1.378 "	3.937 in	143 mm	Desktop	Micro USB (1) USB 2.0 (2)	1.5 GHz	HDMI	10 Mbps 100 Mbps 1000 Mbps	4	4	24 W	eMMC	Raspberry Pi CM4 # CM4102016: ARM Cortex-A72
EDATEC ED-IPC2110-18324US	Heat Sink	-25 °C	60 °C	5.63 in	35 mm	100 mm	1.378 "	3.937 in	143 mm	Desktop	Micro USB (1) USB 2.0 (2)	1.5 GHz	HDMI	10 Mbps 100 Mbps 1000 Mbps	4	4	24 W	eMMC	Raspberry Pi CM4 # CM4108032: ARM Cortex-A72
EDATEC ED-IPC2110-1132	Heat Sink	-25 °C	60 °C	5.63 in	35 mm	100 mm	1.378 "	3.937 in	143 mm	Desktop	Micro USB (1) USB 2.0 (2)	1.5 GHz	HDMI	10 Mbps 100 Mbps 1000 Mbps	4	4	24 W	eMMC	Raspberry Pi CM4 # CM4101032: ARM Cortex-A72
EDATEC ED-IPC2110-14084EU	Heat Sink	-25 °C	60 °C	5.63 in	35 mm	100 mm	1.378 "	3.937 in	143 mm	Desktop	Micro USB (1) USB 2.0 (2)	1.5 GHz	HDMI	10 Mbps 100 Mbps 1000 Mbps	4	4	24 W	eMMC
EDATEC ED-IPC2110-12084EU	Heat Sink	-25 °C	60 °C	5.63 in	35 mm	100 mm	1.378 "	3.937 in	143 mm	Desktop	Micro USB (1) USB 2.0 (2)	1.5 GHz	HDMI	10 Mbps 100 Mbps 1000 Mbps	4	4	24 W	eMMC	Raspberry Pi CM4 # CM4102008: ARM Cortex-A72
EDATEC ED-IPC2110-1108	Heat Sink	-25 °C	60 °C	5.63 in	35 mm	100 mm	1.378 "	3.937 in	143 mm	Desktop	Micro USB (1) USB 2.0 (2)	1.5 GHz	HDMI	10 Mbps 100 Mbps 1000 Mbps	4	4	24 W	eMMC	Raspberry Pi CM4 # CM4101008: ARM Cortex-A72

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 188.06
		10	$ 174.63
		25	$ 167.91

Description

General part information

ED-IPC2110 Series

Single Board Computer 1.5GHz 4 Core RAM Raspberry Pi CM4 # CM4101008: ARM Cortex-A72
