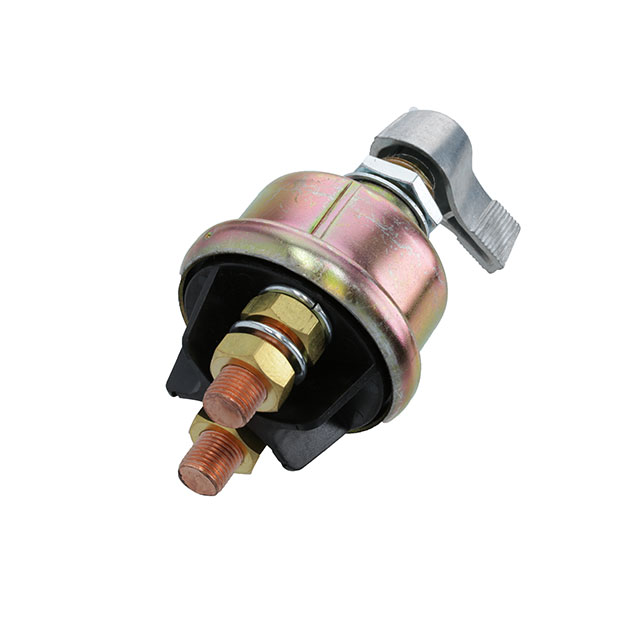

HDB2-1A-3-A1
ActiveSwitch Components
SWITCH SELECT 2POS SPST 300A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HDB2-1A-3-A1
ActiveSwitch Components
SWITCH SELECT 2POS SPST 300A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HDB2-1A-3-A1 |
|---|---|
| Circuit | SPST |
| Current Rating (Amps) | 300 A |
| Illumination | Non-Illuminated |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Number of Positions | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Panel Cutout Dimensions [diameter] | 18.6 mm |
| Switch Function | On-Off |
| Termination Style | Stud |
| Type | Battery Disconnect |
| Voltage Rating - DC | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 69.64 | |
| 10 | $ 64.06 | |||
| 25 | $ 58.48 | |||
| 50 | $ 51.17 | |||
| 100 | $ 47.38 | |||
| 250 | $ 43.59 | |||
| 500 | $ 39.97 | |||
| 1000 | $ 36.82 | |||
Description
General part information
HDB2-1A Series
Selector Switch 2 Position SPST 300A (DC) Panel Mount
