Q-24056000H060i

Active

Amphenol Custom Cable

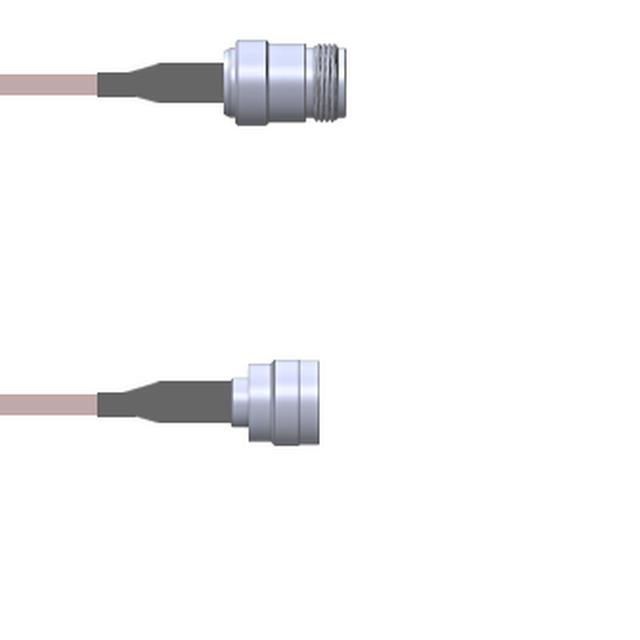

CBL ASSY NTYPE-TNC JACK-PLUG 5'

Deep-Dive with AI

Search across all available documentation for this part.

Q-24056000H060i

Active

Amphenol Custom Cable

CBL ASSY NTYPE-TNC JACK-PLUG 5'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-24056000H060i

1st Connector	N-Type Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	TNC Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-142
Color	Copper
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	5 ft
Length	1.5 m
Length	5 '
Overall Impedance	50 Ohms

Q-240560 Series

Part	2nd Connector	1st Connector	Features	Color	2nd Connector Mounting Type	1st Contact Gender	1st Connector Mounting Type	2nd Contact Gender	Cable Type	Overall Impedance	Length	Length	Length	Frequency - Max [Max]	Length [x]	Length [x]
Amphenol Custom Cable Q-24056000H002M	TNC Plug	N-Type Jack	Shielded	Copper	Free Hanging (In-Line)	Female	Free Hanging (In-Line)	Male	RG-142	50 Ohms	6.6 ft	78.7 in	2 m	11 GHz
Amphenol Custom Cable Q-24056000H0.5M	TNC Plug	N-Type Jack	Shielded	Copper	Free Hanging (In-Line)	Female	Free Hanging (In-Line)	Male	RG-142	50 Ohms		19.69 "	50 cm	11 GHz
Amphenol Custom Cable Q-24056000H006i	TNC Plug	N-Type Jack	Shielded	Copper	Free Hanging (In-Line)	Female	Free Hanging (In-Line)	Male	RG-142	50 Ohms		6 in	152.4 mm	11 GHz
Amphenol Custom Cable Q-24056000H108i	TNC Plug	N-Type Jack	Shielded	Copper	Free Hanging (In-Line)	Female	Free Hanging (In-Line)	Male	RG-142	50 Ohms	9 ft	108 in	2.7 m	11 GHz
Amphenol Custom Cable Q-24056000H024i	TNC Plug	N-Type Jack	Shielded	Copper	Free Hanging (In-Line)	Female	Free Hanging (In-Line)	Male	RG-142	50 Ohms		24 "	609.6 mm	11 GHz
Amphenol Custom Cable Q-24056000H048i	TNC Plug	N-Type Jack	Shielded	Copper	Free Hanging (In-Line)	Female	Free Hanging (In-Line)	Male	RG-142	50 Ohms	4 ft	48 in	1200 mm	11 GHz
Amphenol Custom Cable Q-24056000H072i	TNC Plug	N-Type Jack	Shielded	Copper	Free Hanging (In-Line)	Female	Free Hanging (In-Line)	Male	RG-142	50 Ohms	6 ft	72 in	1.8 m	11 GHz
Amphenol Custom Cable Q-24056000H009i	TNC Plug	N-Type Jack	Shielded	Copper	Free Hanging (In-Line)	Female	Free Hanging (In-Line)	Male	RG-142	50 Ohms		9 "	228.6 mm	11 GHz
Amphenol Custom Cable Q-24056000H018i	TNC Plug	N-Type Jack	Shielded	Copper	Free Hanging (In-Line)	Female	Free Hanging (In-Line)	Male	RG-142	50 Ohms				11 GHz	457.2 mm	457.2 mm
Amphenol Custom Cable Q-24056000H060i	TNC Plug	N-Type Jack	Shielded	Copper	Free Hanging (In-Line)	Female	Free Hanging (In-Line)	Male	RG-142	50 Ohms	5 ft	5 '	1.5 m	11 GHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 109.47
		25	$ 107.32
		50	$ 105.18
		100	$ 103.04
		250	$ 100.89

Description

General part information

Q-240560 Series

Cable Assembly Coaxial N-Type to TNC RG-142 60.0" (1.5m) 5.0'

Documents

Technical documentation and resources

No documents available
