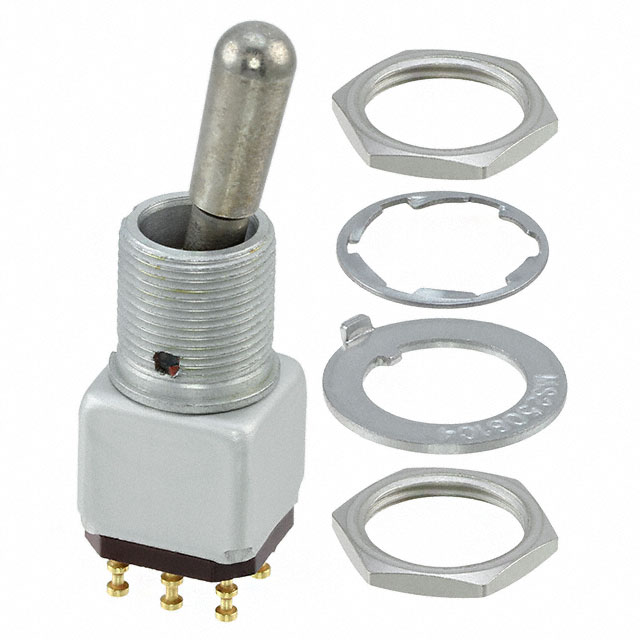

12TW75-3

Active

Honeywell Sensing and Productivity Solutions

SWITCH TOGGLE DPDT 5A 125V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH TOGGLE DPDT 5A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	12TW75-3

Actuator Length [x]	29.46 mm
Actuator Type	Locking Lever
Bushing Thread	15/32-32
Circuit	DPDT
Current Rating (Amps)	5 A
Illumination	Non-Illuminated
Ingress Protection	Environment Sealed
Operating Temperature [Max]	71 °C
Operating Temperature [Min]	-65 ░C
Panel Cutout Dimensions [diameter]	12.4 mm
Switch Function	On-On
Termination Style	Solder Turret
Voltage Rating - AC	125 V

Part	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Illumination	Panel Cutout Dimensions [diameter]	Actuator Length [x]	Circuit	Actuator Type	Bushing Thread	Voltage Rating - AC	Current Rating (Amps)	Switch Function
Honeywell Sensing and Productivity Solutions 12TW75-3	Solder Turret	71 °C	-65 ░C	Environment Sealed	Non-Illuminated	12.4 mm	29.46 mm	DPDT	Locking Lever	15/32-32	125 V	5 A	On-On

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 69.67
