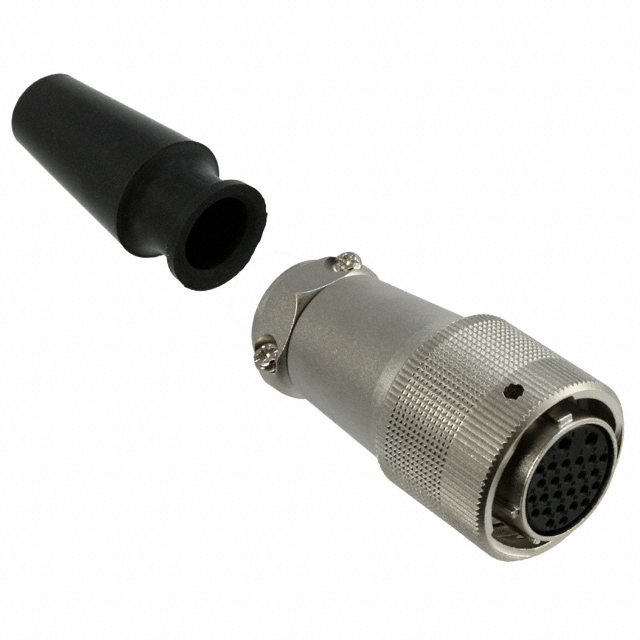

JRC21BP-26S(71)

Obsolete

Hirose Electric USA, Inc.

CONN PLUG FMALE 26P SOLDER CUP

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN PLUG FMALE 26P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	JRC21BP-26S(71)

Backshell Material, Plating	Aluminum Alloy, Nickel
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Finish Thickness - Mating	78.7 µin
Contact Finish Thickness - Mating	2 µm
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Bayonet Lock
Features	Backshell, Strain Relief, Clamp, Coupling Nut
Insert Material	Phenol Formaldehyde (PF)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	26
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Aluminum Alloy
Shell Size - Insert	21
Shielding	Unshielded
Voltage Rating	350 V, 250 VAC

Part	Mounting Type	Contact Material	Shielding	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Features	Current Rating (Amps)	Number of Positions	Connector Type	Voltage Rating	Material Flammability Rating	Shell Size - Insert	Primary Material	Shell Material	Insert Material	Fastening Type	Backshell Material, Plating	Shell Finish	Color	Orientation
Hirose Electric USA, Inc. JRC21BP-26S(71)	Free Hanging (In-Line)	Copper Alloy	Unshielded	Silver	78.7 µin	2 µm	-25 °C	85 °C	Backshell Clamp Coupling Nut Strain Relief	5 A	26	Female Sockets Plug	250 VAC 350 V	UL94 V-0	21	Metal	Aluminum Alloy	Phenol Formaldehyde (PF)	Bayonet Lock	Aluminum Alloy Nickel	Nickel	Silver	Keyed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

26 Position Circular Connector Plug, Female Sockets Solder Cup
