7499-1513-000

Active

Radiall USA, Inc.

SSMB M STR NWF SP

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SSMB M STR NWF SP

Technical Specifications

Parameters and characteristics for this part

Specification	7499-1513-000

Body Finish	Gold
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SSMB
Connector Type	Male Pin, Jack
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Features	Extended Insulation
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	250 VDC

Part	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles	Number of Ports	Body Finish	Shield Termination	Features	Body Material	Center Contact Material	Connector Style	Housing Color	Contact Termination	Mounting Feature	Fastening Type	Frequency - Max [Max]	Voltage Rating	Connector Type	Center Contact Plating	Impedance
Radiall USA, Inc. 7499-1513-000	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	500	1	Gold	Solder	Extended Insulation	Stainless Steel	Beryllium Copper	SSMB	Gold	Solder Cup	Flange	Snap-On	12.4 GHz	250 VDC	Jack Male Pin	Gold	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

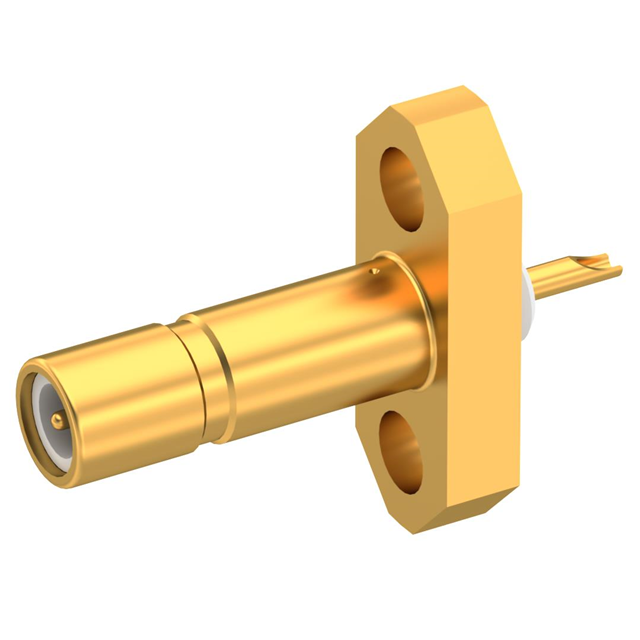

SSMB Connector Jack, Male Pin 50 Ohms Panel Mount Solder Cup
