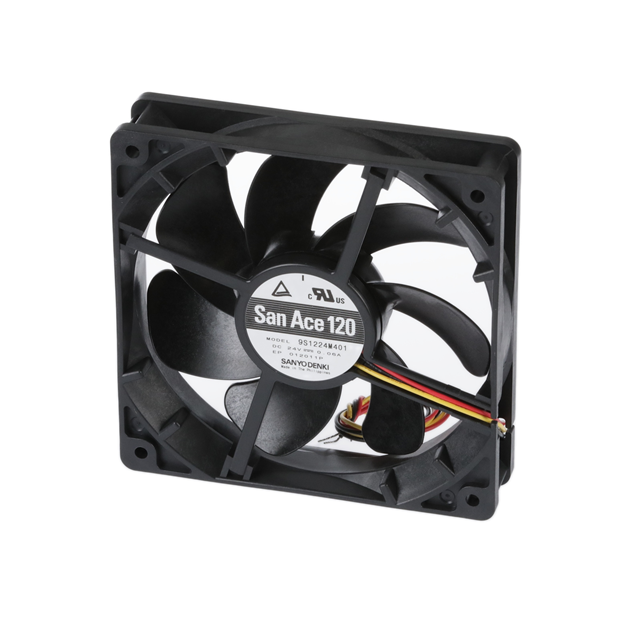

9S1224M401

Active

Sanyo Denki America Inc.

FAN AXIAL 120X25MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHandling Instructions for Fan Motors Rotor Balancing

9S1224M401

Active

Sanyo Denki America Inc.

FAN AXIAL 120X25MM 24VDC WIRE

Deep-Dive with AI

DocumentsHandling Instructions for Fan Motors Rotor Balancing

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9S1224M401

Air Flow	58.6 CFM
Air Flow	1.64 m³/min
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	60 mA
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	40000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	24 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	1.44 W
RPM	1850 RPM
Size / Dimension [x]	120 mm
Size / Dimension [y]	120 mm
Static Pressure	22.4 Pa
Static Pressure	0.09 in H2O
Termination	3 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	26.4 VDC
Voltage Range [Min]	14 VDC
Width [y]	25 mm

9S1224 Series

Part	Voltage Range [Max]	Voltage Range [Min]	Air Flow	Air Flow	Material - Blade	Bearing Type	Material - Frame	Power (Watts)	Termination	Size / Dimension [y]	Size / Dimension [x]	Width [y]	RPM	Static Pressure	Static Pressure	Voltage - Rated	Lifetime @ Temp.	Fan Type	Current Rating (Amps)	Features	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Noise	Approval Agency
Sanyo Denki America Inc. 9S1224M4011	26.4 VDC	14 VDC	58.6 CFM	1.64 m³/min	Plastic	Ball	Plastic	1.44 W	3 Wire Leads	120 mm	120 mm	25 mm	1850 RPM	22.4 Pa	0.09 in H2O	24 VDC	40000 Hrs	Tubeaxial	60 mA	Locked Rotor Protection Speed Sensor (Tach)	70 °C	70 °C	-10 °C	-10 °C	24 dB	CSA TUV UL
Sanyo Denki America Inc. 9S1224M4021	26.4 VDC	14 VDC	58.6 CFM	1.64 m³/min	Plastic	Ball	Plastic	1.44 W	2 Wire Leads	120 mm	120 mm	25 mm	1850 RPM	22.4 Pa	0.09 in H2O	24 VDC	40000 Hrs	Tubeaxial	60 mA		70 °C	70 °C	-10 °C	-10 °C	24 dB	CSA TUV UL
Sanyo Denki America Inc. 9S1224M4D011	26.4 VDC	14 VDC	58.6 CFM	1.64 m³/min	Plastic	Ball	Plastic	1.44 W	3 Wire Leads	120 mm	120 mm	25 mm	1850 RPM	22.4 Pa	0.09 in H2O	24 VDC	40000 Hrs	Tubeaxial	60 mA	Locked Rotor Sensor	70 °C	70 °C	-10 °C	-10 °C	24 dB	CSA TUV UL
Sanyo Denki America Inc. 9S1224M4D01	26.4 VDC	14 VDC	58.6 CFM	1.64 m³/min	Plastic	Ball	Plastic	1.44 W	3 Wire Leads	120 mm	120 mm	25 mm	1850 RPM	22.4 Pa	0.09 in H2O	24 VDC	40000 Hrs	Tubeaxial	60 mA	Locked Rotor Sensor	70 °C	70 °C	-10 °C	-10 °C	24 dB	CSA TUV UL
Sanyo Denki America Inc. 9S1224M402	26.4 VDC	14 VDC	58.6 CFM	1.64 m³/min	Plastic	Ball	Plastic	1.44 W	2 Wire Leads	120 mm	120 mm	25 mm	1850 RPM	22.4 Pa	0.09 in H2O	24 VDC	40000 Hrs	Tubeaxial	60 mA		70 °C	70 °C	-10 °C	-10 °C	24 dB	CSA TUV UL
Sanyo Denki America Inc. 9S1224M401	26.4 VDC	14 VDC	58.6 CFM	1.64 m³/min	Plastic	Ball	Plastic	1.44 W	3 Wire Leads	120 mm	120 mm	25 mm	1850 RPM	22.4 Pa	0.09 in H2O	24 VDC	40000 Hrs	Tubeaxial	60 mA	Locked Rotor Protection Speed Sensor (Tach)	70 °C	70 °C	-10 °C	-10 °C	24 dB	CSA TUV UL

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 20.78
		10	$ 18.53
		25	$ 17.70
		50	$ 17.10
		100	$ 16.52
		250	$ 15.78
		500	$ 15.24

Description

General part information

9S1224 Series

Fan Tubeaxial 24VDC Square - 120mm L x 120mm H Ball 58.6 CFM (1.64m³/min) 3 Wire Leads
