89083.35.01

Active

Prysmian Group

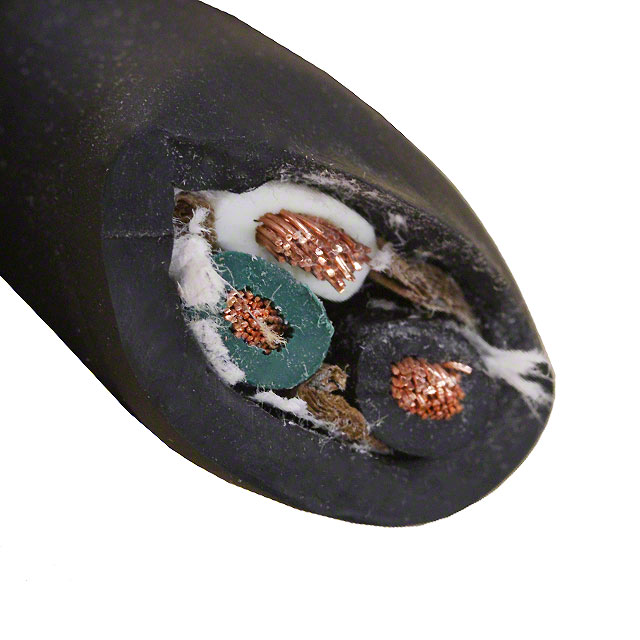

CABLE 3COND 12AWG BLACK 100'

Deep-Dive with AI

Search across all available documentation for this part.

89083.35.01

Active

Prysmian Group

CABLE 3COND 12AWG BLACK 100'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	89083.35.01

Cable Type	Multi-Conductor
Conductor Insulation	Thermoplastic Elastomer (TPE)
Conductor Material	Copper, Bare
Conductor Strand [custom]	30 AWG
Conductor Strand [custom]	65
Features	Oil Resistant
Jacket (Insulation) Diameter [diameter]	15.6 mm
Jacket (Insulation) Diameter [diameter]	0.614 "
Jacket (Insulation) Material	Thermoplastic Elastomer (TPE)
Jacket (Insulation) Thickness	1.143 mm
Jacket (Insulation) Thickness	0.045 in
Jacket Color	Black
Length	15.24 m, 76.2 m
Length	3000 "
Length [x]	50 ft, 100 ft, 25 ft
Length [x]	30.5 m, 7.62 m
Number of Conductors	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-50 °C
Usage	Cord and Cordset
Voltage	600 V
Wire Gauge	12 AWG

89083 Series

Part	Conductor Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Features	Conductor Material	Wire Gauge	Voltage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket Color	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length	Number of Conductors	Length [x]	Length [x]	Usage
Prysmian Group 89083.85.01	Thermoplastic Elastomer (TPE)	-50 °C	105 ░C	Thermoplastic Elastomer (TPE)	15.6 mm	0.614 "	Oil Resistant	Copper Annealed Bare	12 AWG	600 V	1.143 mm	0.045 in	Black	Multi-Conductor	30 AWG	65	3000 "	76.2 m	3
Prysmian Group 89083.XX.02	Thermoplastic Elastomer (TPE)	-50 °C	105 ░C	Thermoplastic Elastomer (TPE)	15.6 mm	0.614 "	Oil Resistant	Copper Annealed Bare	12 AWG	600 V	1.143 mm	0.045 in		Multi-Conductor	30 AWG	65			3
Prysmian Group 89083.35.02	Thermoplastic Elastomer (TPE)	-50 °C	105 ░C	Thermoplastic Elastomer (TPE)	15.6 mm	0.614 "	Oil Resistant	Copper Bare	12 AWG	600 V	1.143 mm	0.045 in		Multi-Conductor	30 AWG	65	3000 "	76.2 m	3
Prysmian Group 89083.XX.05	Thermoplastic Elastomer (TPE)	-50 °C	105 ░C	Thermoplastic Elastomer (TPE)	15.6 mm	0.614 "	Oil Resistant	Copper Annealed Bare	12 AWG	600 V	1.143 mm	0.045 in	Yellow	Multi-Conductor	30 AWG	65			3
Prysmian Group 89083.99.01	Thermoplastic Elastomer (TPE)	-50 °C	105 ░C	Thermoplastic Elastomer (TPE)	15.6 mm	0.614 "	Oil Resistant	Copper Annealed Bare	12 AWG	600 V	1.143 mm	0.045 in	Black	Multi-Conductor	30 AWG	65			3
Prysmian Group 89083.41.01	Thermoplastic Elastomer (TPE)	-50 °C	105 ░C	Thermoplastic Elastomer (TPE)	15.6 mm	0.614 "	Oil Resistant	Copper Annealed Bare	12 AWG	600 V	1.143 mm	0.045 in	Black	Multi-Conductor	30 AWG	65	1000 ft	304.8 m	3
Prysmian Group 89083.41.05	Thermoplastic Elastomer (TPE)	-50 °C	105 ░C	Thermoplastic Elastomer (TPE)	15.6 mm	0.614 "	Oil Resistant	Copper Annealed Bare	12 AWG	600 V	1.143 mm	0.045 in	Yellow	Multi-Conductor	30 AWG	65	1000 ft	304.8 m	3
Prysmian Group 89083.35.01	Thermoplastic Elastomer (TPE)	-50 °C	105 ░C	Thermoplastic Elastomer (TPE)	15.6 mm	0.614 "	Oil Resistant	Copper Bare	12 AWG	600 V	1.143 mm	0.045 in	Black	Multi-Conductor	30 AWG	65	3000 "	15.24 m 76.2 m	3	25 ft 50 ft 100 ft	7.62 m 30.5 m	Cord and Cordset
Prysmian Group 89083.44.01	Thermoplastic Elastomer (TPE)	-50 °C	105 ░C	Thermoplastic Elastomer (TPE)	15.6 mm	0.614 "	Oil Resistant	Copper Annealed Bare	12 AWG	600 V	1.143 mm	0.045 in	Black	Multi-Conductor	30 AWG	65	2500 ft	762 m	3

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 268.77
		1	$ 211.12
		1	$ 106.96
		5	$ 238.90
		5	$ 172.74
		5	$ 87.51
		10	$ 216.51
		10	$ 68.07
		10	$ 134.35
	Spool	1	$ 643.52
		3	$ 595.34
		5	$ 574.70
		7	$ 560.93
		10	$ 547.17

Description

General part information

89083 Series

3 Conductor Multi-Conductor Cable Black 12 AWG 25.00' (7.62m)

Documents

Technical documentation and resources

No documents available
