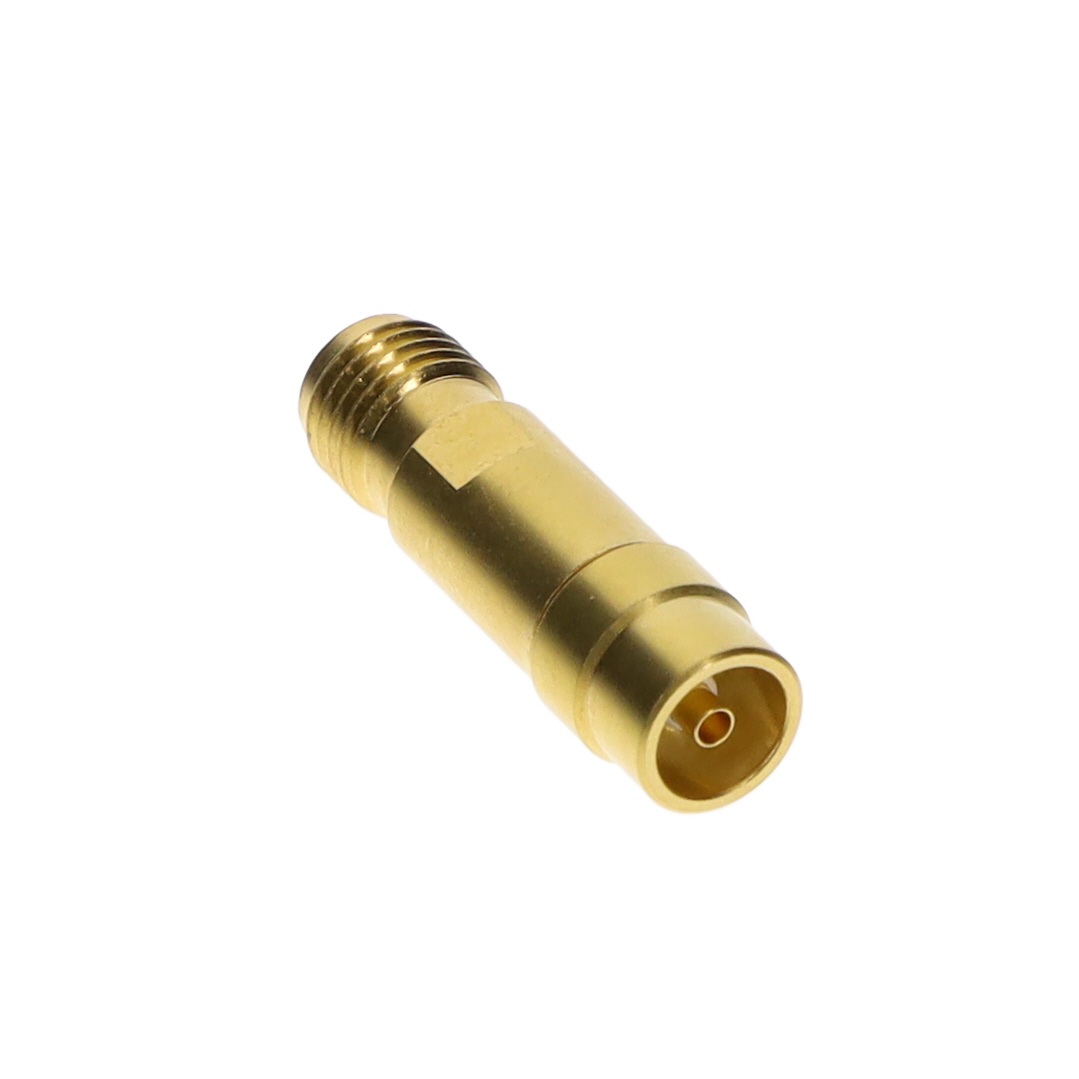

31_MBX-SMA-50-1/111_NE

Active

Huber+Suhner, Inc.

Search across all available documentation for this part.

Active

Huber+Suhner, Inc.

31_MBX-SMA-50-1/111_NE

Technical Specifications

Parameters and characteristics for this part

Specification	31_MBX-SMA-50-1/111_NE

Adapter Series	SMA to MBX
Adapter Type	Jack to Jack
Body Finish	Gold
Body Material	Bronze
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Between Series
Convert From (Adapter End)	MBX Jack, Female Socket
Convert To (Adapter End)	SMA Jack, Female Socket
Dielectric Material	Liquid Crystal Polymer (LCP), Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Frequency - Max [Max]	6000 MHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Adapter Type	Body Material	Mating Cycles	Operating Temperature [Max]	Operating Temperature [Min]	Adapter Series	Center Gender	Fastening Type	Convert To (Adapter End)	Style	Center Contact Material	Conversion Type	Body Finish	Center Contact Plating	Mounting Type	Impedance	Frequency - Max [Max]	Convert From (Adapter End)	Dielectric Material
Huber+Suhner, Inc. 31_MBX-SMA-50-1/111_NE	Jack to Jack	Bronze	500	155 °C	-55 °C	SMA to MBX	Female to Female	Snap-On Threaded	Female Socket SMA Jack	Straight	Beryllium Copper	Between Series	Gold	Gold	Free Hanging (In-Line)	50 Ohms	6000 MHz	MBX Jack Female Socket	Liquid Crystal Polymer (LCP) Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector MBX Jack, Female Socket To SMA Jack, Female Socket 50 Ohms
