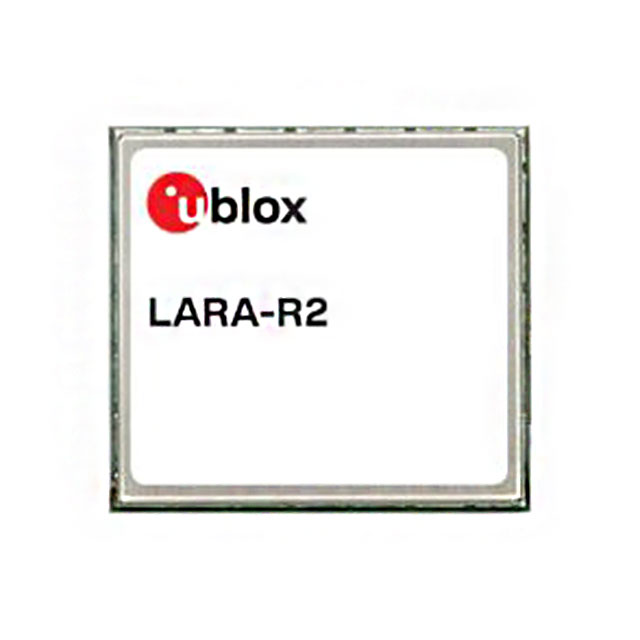

LARA-R203-02B

Obsolete

u-blox

RF TXRX MOD CELL NAV CAST SMD

Search across all available documentation for this part.

Obsolete

u-blox

RF TXRX MOD CELL NAV CAST SMD

Technical Specifications

Parameters and characteristics for this part

Specification	LARA-R203-02B

Antenna Type	Antenna Not Included, Castellation
Current - Transmitting [Max]	540 mA
Current - Transmitting [Min]	50 mA
Frequency	1900 MHz, 700 MHz, 1.7 GHz
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	100-SMD Module
Protocol	4G LTE
RF Family/Standard	Cellular, Navigation
Sensitivity	-110 dBm
Serial Interfaces	USB, I2C, UART
Voltage - Supply	3.8 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Serial Interfaces	Frequency	Current - Transmitting [Max]	Current - Transmitting [Min]	Antenna Type	Mounting Type	Voltage - Supply	RF Family/Standard	Protocol	Sensitivity	Package / Case	Current - Receiving [Min]	Current - Receiving [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	Power - Output	Data Rate	Modulation
u-blox LARA-R203-02B	85 °C	-40 °C	I2C UART USB	1.7 GHz 700 MHz 1900 MHz	540 mA	50 mA	Antenna Not Included Castellation	Surface Mount	3.8 V	Cellular Navigation	4G LTE	-110 dBm	100-SMD Module
u-blox LARA-R203-03B	85 °C	-40 °C	GPIO I2C SDIO UART USB	1.7 GHz 700 MHz 1900 MHz	540 mA	50 mA	Antenna Not Included Castellation	Surface Mount		Cellular	4G LTE	-115 dBm	100-SMD Module	50 mA	540 mA	3.3 V	4.4 V	23 dBmW	10.3 Mbps	QPSK

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cellular, Navigation 4G LTE Transceiver Module 700MHz, 1.7GHz, 1.9GHz Antenna Not Included, Castellation Surface Mount
