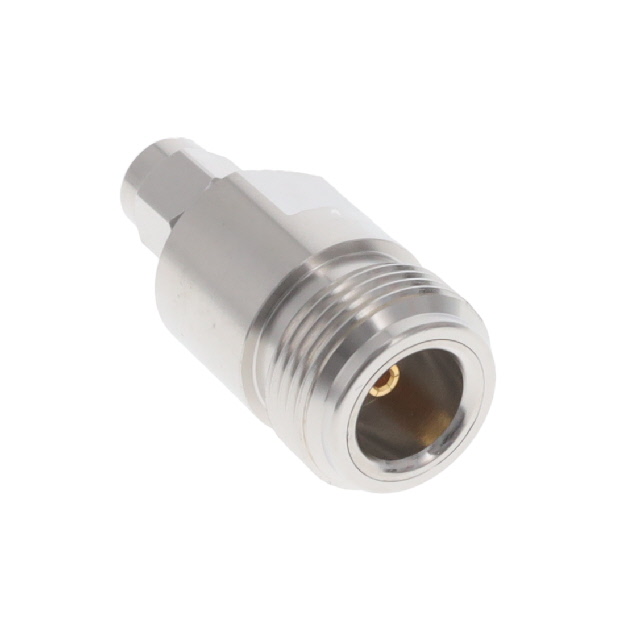

CT3321A

Active

Cal Test Electronics

CONN ADAPT N JACK TO SMA PLUG

Search across all available documentation for this part.

Active

Cal Test Electronics

CONN ADAPT N JACK TO SMA PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	CT3321A

Adapter Type	Plug to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass, Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	SMA Plug, Male Pin
Convert To (Adapter End)	Female Socket, N Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Style	Straight

Part	Style	Mounting Type	Impedance	Dielectric Material	Center Contact Material	Conversion Type	Adapter Type	Center Contact Plating	Body Material	Convert From (Adapter End)	Body Finish	Frequency - Max [Max]	Convert To (Adapter End)
Cal Test Electronics CT3321A	Straight	Free Hanging (In-Line)	50 Ohms	Polytetrafluoroethylene (PTFE)	Beryllium Copper Brass	Between Series	Plug to Jack	Gold	Brass	SMA Plug Male Pin	Nickel	11 GHz	Female Socket N Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 49.00

General part information

Adapter Coaxial Connector SMA Plug, Male Pin To N Jack, Female Socket 50 Ohms
