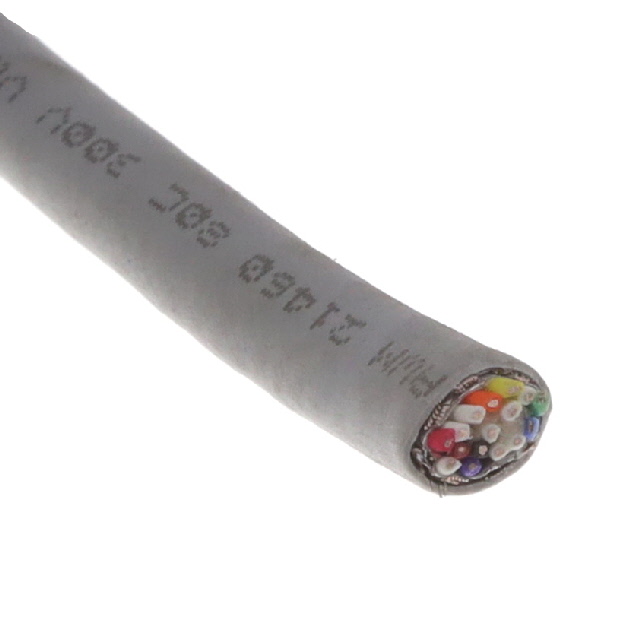

M3426 SL199

Active

ALPHA WIRE

MULTI-PAIR 16COND 24AWG 3000'

Search across all available documentation for this part.

Active

ALPHA WIRE

MULTI-PAIR 16COND 24AWG 3000'

Technical Specifications

Parameters and characteristics for this part

Specification	M3426 SL199

Cable Type	Multi-Pair
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	9.22 mm
Jacket (Insulation) Diameter [diameter]	0.363 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Slate
Length	914.4 m
Length	3000 ft
Number of Conductors	16
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Shield Coverage	100 %, 65 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Voltage	300 V
Wire Gauge	24 AWG

Part	Length	Length	Shield Material	Conductor Insulation	Jacket (Insulation) Material	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Features	Shield Coverage	Wire Gauge	Cable Type	Shield Type	Jacket Color	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Voltage	Number of Conductors	Conductor Material	Length [x]	Length [x]
ALPHA WIRE M3426 SL199	914.4 m	3000 ft	Aluminum Copper Tinned	Polypropylene (PP)	Poly-Vinyl Chloride (PVC)	-20 C	80 C	9.22 mm	0.363 in	32 AWG	7	Drain Wire Rip Cord	65 % 100 %	24 AWG	Multi-Pair	Braid Foil	Slate	0.889 mm	0.035 in	300 V	16	Copper Tinned
ALPHA WIRE M3426 SL005			Aluminum Copper Tinned	Polypropylene (PP)	Poly-Vinyl Chloride (PVC)	-20 C	80 C	9.22 mm	0.363 in	32 AWG	7	Drain Wire Rip Cord	65 % 100 %	24 AWG	Multi-Pair	Braid Foil	Slate	0.889 mm	0.035 in	300 V	16	Copper Tinned	30.5 m	100 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	5000	$ 3.35
Newark	1 Foot	25	$ 3.64

General part information

16 (8 Pair Twisted) Conductor Multi-Pair Cable Slate 24 AWG Foil, Braid 3000' (914.4m)
