2006-1207
ActiveWAGO Corporation

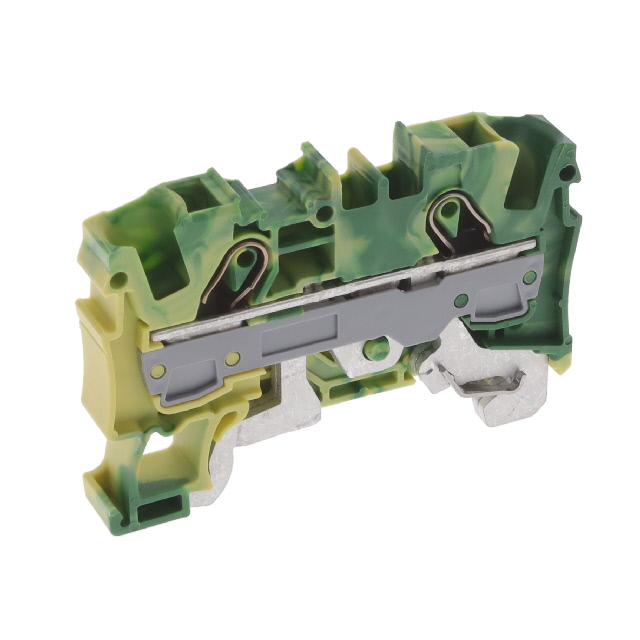

DIN RAIL MOUNT TERMINAL BLOCK, 2 POSITIONS, 20 AWG, 8 AWG, 6 MM², PUSH IN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsTechnical Data Sheet EN
2006-1207
ActiveWAGO Corporation
DIN RAIL MOUNT TERMINAL BLOCK, 2 POSITIONS, 20 AWG, 8 AWG, 6 MM², PUSH IN
Deep-Dive with AI
DocumentsTechnical Data Sheet EN
Technical Specifications
Parameters and characteristics for this part
| Specification | 2006-1207 |
|---|---|
| Color | Green, Yellow |
| Material - Insulation | Polyamide (PA66), Nylon 6/6 |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Stripping Length [Max] | 15 mm |
| Stripping Length [Min] | 13 mm |
| Terminal - Width | 7.5 mm |
| Termination Style | Push In, Spring |
| Type | Ground, Earth |
| Wire Gauge or Range - AWG [Max] | 14 AWG |
| Wire Gauge or Range - AWG [Min] | 8 AWG |
| Wire Gauge or Range - mm² [Max] | 10 mm² |
| Wire Gauge or Range - mm² [Min] | 2.5 mm² |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
2006-120 Series
Terminal Block Connector 2 Position Ground, Earth Green, Yellow 8-14 AWG
