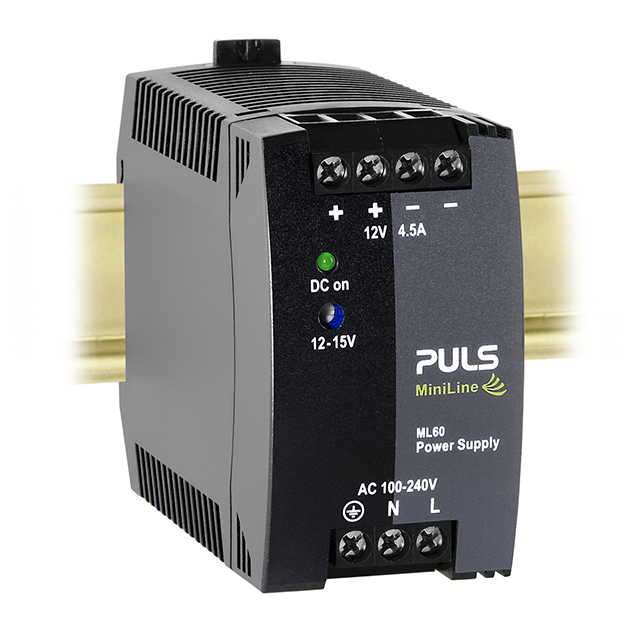

ML60.121

Active

PULS, LP

POWER SUPPLY, 54W, 100-240VAC 1PH, 12-15VDC, 4.5-3.6A

Search across all available documentation for this part.

Active

PULS, LP

POWER SUPPLY, 54W, 100-240VAC 1PH, 12-15VDC, 4.5-3.6A

Technical Specifications

Parameters and characteristics for this part

Specification	ML60.121

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	85 VAC
Applications	ITE (Commercial)
Approval Agency	DNV GL, CSA, EAC, IEC, ABS, NEC, UL
Current - Output (Max) [Max]	4.5 A
Efficiency	87.2 %
Features	Universal Input, Adjustable Output, Load Sharing
Input Type	AC
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	54 W
Size / Dimension [x]	3.58 in
Size / Dimension [x]	91 mm
Size / Dimension [y]	1.77 "
Size / Dimension [y]	45 mm
Size / Dimension [z]	2.95 "
Size / Dimension [z]	75 mm
Voltage - Isolation	500 V
Voltage - Output 1	12 V

Part	Current - Output (Max) [Max]	Input Type	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Features	Number of Outputs	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Power (Watts)	Voltage - Output 1	Voltage - Isolation	Efficiency	Applications
PULS, LP ML60.122	4.5 A	AC	-10 °C	70 °C	ABS CSA DNV GL EAC IEC NEC UL	Adjustable Output Load Sharing Universal Input	1	85 VAC	264 VAC	2.95 "	1.77 "	3.58 in	45 mm	91 mm	75 mm	50 W	12 V	500 V	87.6 %	ITE (Commercial)
PULS, LP ML60.241	2.5 A	AC	0 °C	70 °C	ABS CSA DNV GL EAC IEC NEC UL	Adjustable Output Load Sharing Universal Input	1	85 VAC	264 VAC	2.95 "	1.77 "	3.58 in	45 mm	91 mm	75 mm		24 V	500 V	89.7 %	ITE (Commercial)
PULS, LP ML60.242	2.5 A	AC	-10 °C	70 °C	ABS CSA DNV GL EAC IEC NEC UL	Adjustable Output Load Sharing Universal Input	1	85 VAC	264 VAC	2.95 "	1.77 "	3.58 in	45 mm	91 mm	75 mm		24 V	500 V	90.4 %	ITE (Commercial)
PULS, LP ML60.121	4.5 A	AC	0 °C	70 °C	ABS CSA DNV GL EAC IEC NEC UL	Adjustable Output Load Sharing Universal Input	1	85 VAC	264 VAC	2.95 "	1.77 "	3.58 in	45 mm	91 mm	75 mm	54 W	12 V	500 V	87.2 %	ITE (Commercial)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 144.00

General part information

POWER SUPPLY, 54W, 100-240VAC 1PH, 12-15VDC, 4.5-3.6A
