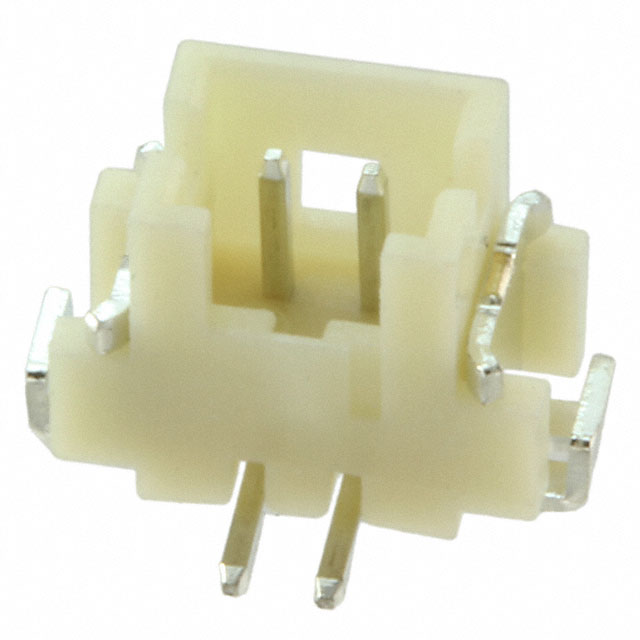

M30-6000246R

Active

Harwin Inc.

2 POS. MALE SIL VERTICAL SMT CONN. (T+R) ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM30-1050046 M30 Series Spec +1

M30-6000246R

Active

Harwin Inc.

2 POS. MALE SIL VERTICAL SMT CONN. (T+R) ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsM30-1050046 M30 Series Spec +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M30-6000246R

Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.03 µm
Contact Finish Thickness - Mating	80 µin
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1 A
Fastening Type	Detent Lock
Features	Solder Retention, Board Guide
Insulation Color	Natural
Insulation Height	4.8 mm
Insulation Height	0.189 in
Insulation Material	Nylon 6T, Polyamide (PA6T)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	1.25 mm
Pitch - Mating	0.049 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	150 VDC

M30-600 Series

Part	Mounting Type	Material Flammability Rating	Number of Positions Loaded	Insulation Color	Number of Rows	Termination	Features	Voltage Rating	Insulation Height	Insulation Height	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Contact Finish - Post	Shrouding	Connector Type	Pitch - Mating	Pitch - Mating	Contact Type	Contact Shape	Current Rating (Amps)	Style	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Contact Material
Harwin Inc. M30-6000246R	Surface Mount	UL94 V-0	All	Natural	1	Solder	Board Guide Solder Retention	150 VDC	4.8 mm	0.189 in	Nylon 6T Polyamide (PA6T)	2.03 µm	80 µin	Detent Lock	Tin	Shrouded - 4 Wall	Header	1.25 mm	0.049 in	Male Pin	Square	1 A	Board to Cable/Wire	-25 °C	85 °C	2	Brass
Harwin Inc. M30-6000746	Surface Mount	UL94 V-0	All	Natural	1	Solder	Board Guide Solder Retention	150 VDC	4.8 mm	0.189 in	Nylon 6T Polyamide (PA6T)	2.03 µm	80 µin	Detent Lock	Tin	Shrouded - 4 Wall	Header	1.25 mm	0.049 in	Male Pin	Square	1 A	Board to Cable/Wire	-25 °C	85 °C	7	Brass
Harwin Inc. M30-6000646	Surface Mount	UL94 V-0	All	Natural	1	Solder	Board Guide Solder Retention	150 VDC	4.8 mm	0.189 in	Nylon 6T Polyamide (PA6T)	2.03 µm	80 µin	Detent Lock	Tin	Shrouded - 4 Wall	Header	1.25 mm	0.049 in	Male Pin	Square	1 A	Board to Cable/Wire	-25 °C	85 °C	6	Brass
Harwin Inc. M30-6001546	Surface Mount	UL94 V-0	All	Natural	1	Solder	Board Guide Solder Retention	150 VDC	4.8 mm	0.189 in	Nylon 6T Polyamide (PA6T)	2.03 µm	80 µin	Detent Lock	Tin	Shrouded - 4 Wall	Header	1.25 mm	0.049 in	Male Pin	Square	1 A	Board to Cable/Wire	-25 °C	85 °C	15	Brass
Harwin Inc. M30-6000446R	Surface Mount	UL94 V-0	All	Natural	1	Solder	Board Guide Solder Retention	150 VDC	4.8 mm	0.189 in	Nylon 6T Polyamide (PA6T)	2.03 µm	80 µin	Detent Lock	Tin	Shrouded - 4 Wall	Header	1.25 mm	0.049 in	Male Pin	Square	1 A	Board to Cable/Wire	-25 °C	85 °C	4	Brass
Harwin Inc. M30-6000346	Surface Mount	UL94 V-0	All	Natural	1	Solder	Board Guide Solder Retention	150 VDC	4.8 mm	0.189 in	Nylon 6T Polyamide (PA6T)	2.03 µm	80 µin	Detent Lock	Tin	Shrouded - 4 Wall	Header	1.25 mm	0.049 in	Male Pin	Square	1 A	Board to Cable/Wire	-25 °C	85 °C		Brass
Harwin Inc. M30-6000546	Surface Mount	UL94 V-0	All	Natural	1	Solder	Board Guide Solder Retention	150 VDC	4.8 mm	0.189 in	Nylon 6T Polyamide (PA6T)	2.03 µm	80 µin	Detent Lock	Tin	Shrouded - 4 Wall	Header	1.25 mm	0.049 in	Male Pin	Square	1 A	Board to Cable/Wire	-25 °C	85 °C		Brass

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 0.98
Newark	Each (Supplied on Full Reel)	1000	$ 1.11
		2000	$ 1.01
		4000	$ 0.97

Description

General part information

M30-600 Series

Connector Header Surface Mount 2 position 0.049" (1.25mm)

Documents

Technical documentation and resources

M30-1050046

M30 Series Spec

Datasheet
