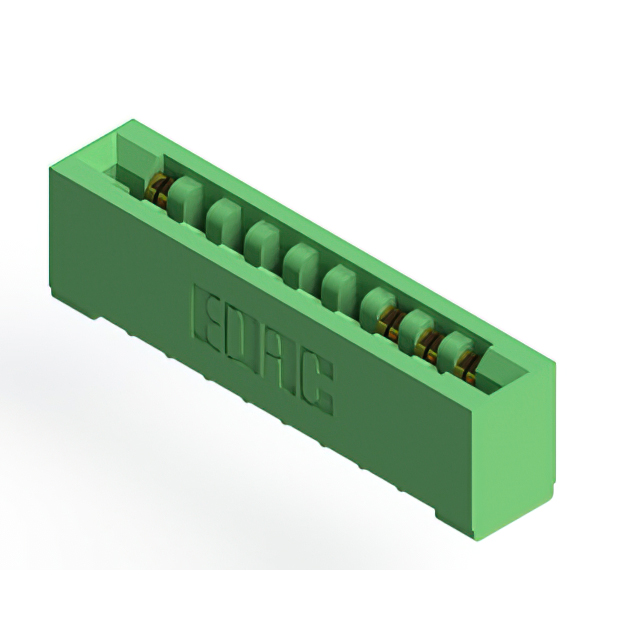

807-009-554-101
ActiveEDAC Inc.
3.96MM RIGHT-ANGLE 18P -40℃~+125℃ PUSH-PULL,P=3.96MM EDGEBOARD CONNECTORS ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 807-009-554-101 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 18 |
| Number of Positions/Bay/Row [custom] | 9 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 1 |
807-009 Series
...
| Part | Gender | Read Out | Termination | Number of Positions | Material - Insulation | Color | Number of Positions/Bay/Row [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Card Type | Termination Rows | Contact Type | Contact Material | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish | Number of Rows | Pitch [x] | Pitch [x] | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Mounting Type | Flange Feature | Flange Feature | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Female | Single | Solder | 9 | Diallyl Phthalate (DAP) | Green | 9 | 125 °C | -40 °C | Non Specified - Single Edge | 1 | Semi Bellows | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Tin | 1 | 0.156 in | 3.96 mm | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Through Hole | ||||
EDAC Inc. | Female | Single | Solder | 9 | Diallyl Phthalate (DAP) | Green | 9 | 125 °C | -40 °C | Non Specified - Single Edge | 1 | Semi Bellows | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 1 | 0.156 in | 3.96 mm | Side Mount Opening Unthreaded | Through Hole | 3.25 mm | 0.128 in | 10 Áin | 0.25 Ám | ||
EDAC Inc. | Female | Single | Solder | 9 | Diallyl Phthalate (DAP) | Green | 9 | 125 °C | -40 °C | Non Specified - Single Edge | 1 | Semi Bellows | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Tin | 1 | 0.156 in | 3.96 mm | Side Mount Opening Unthreaded | Through Hole | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Female | Dual | Solder | 18 | Diallyl Phthalate (DAP) | Green | 9 | 125 °C | -40 °C | Non Specified - Dual Edge | 1 | Semi Bellows | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 2 | 0.156 in | 3.96 mm | Through Hole Right Angle | 10 Áin | 0.25 Ám | |||||
EDAC Inc. | Female | Single | Solder | 9 | Diallyl Phthalate (DAP) | Green | 9 | 125 °C | -40 °C | Non Specified - Single Edge | 1 | Semi Bellows | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 1 | 0.156 in | 3.96 mm | Side Mount Opening Unthreaded | Through Hole Right Angle | 3.25 mm | 0.128 in | 10 Áin | 0.25 Ám | ||
EDAC Inc. | Female | Dual | Wire Wrap | 18 | Diallyl Phthalate (DAP) | Green | 9 | 125 °C | -40 °C | Non Specified - Dual Edge | 1 | Semi Bellows | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 2 | 0.156 in | 3.96 mm | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | Through Hole | 10 Áin | 0.25 Ám | ||
EDAC Inc. | Female | Single | Solder | 9 | Diallyl Phthalate (DAP) | Green | 9 | 125 °C | -40 °C | Non Specified - Single Edge | 1 | Semi Bellows | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 1 | 0.156 in | 3.96 mm | Flush Mount M3 Threaded Insert Top Opening | Through Hole Right Angle | 10 Áin | 0.25 Ám | ||||
EDAC Inc. | Female | Dual | Solder Eyelet(s) | 18 | Diallyl Phthalate (DAP) | Green | 9 | 125 °C | -40 °C | Non Specified - Dual Edge | 1 | Semi Bellows | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Tin | 2 | 0.156 in | 3.96 mm | Through Hole | |||||||
EDAC Inc. | Female | Dual | Solder | 18 | Diallyl Phthalate (DAP) | Green | 9 | 125 °C | -40 °C | Non Specified - Dual Edge | 1 | Semi Bellows | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 2 | 0.156 in | 3.96 mm | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Through Hole Right Angle | 10 Áin | 0.25 Ám | ||
EDAC Inc. | Female | Single | Wire Wrap | 9 | Diallyl Phthalate (DAP) | Green | 9 | 125 °C | -40 °C | Non Specified - Single Edge | 1 | Semi Bellows | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Tin | 1 | 0.156 in | 3.96 mm | Through Hole |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
807-009 Series
18 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
