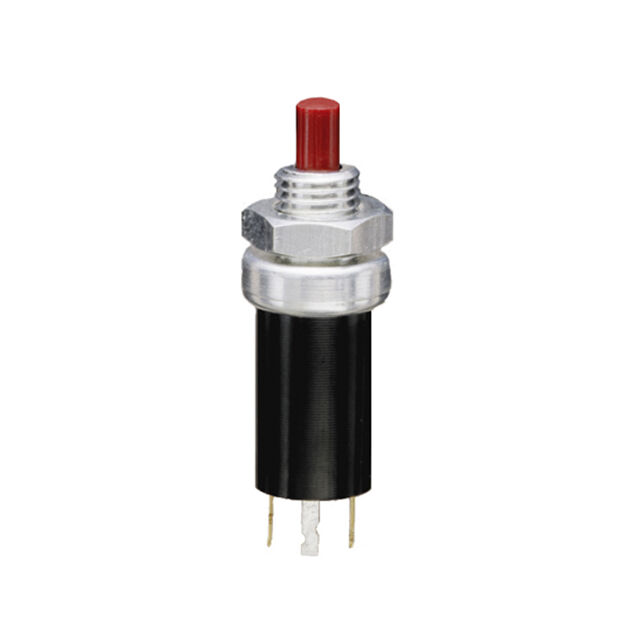

46-101 RED

Active

Grayhill Inc.

SWITCH PUSH SPDT 0.25A 115V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH PUSH SPDT 0.25A 115V

Technical Specifications

Parameters and characteristics for this part

Specification	46-101 RED

Actuator Marking	No Marking
Actuator Type	Round, Plunger
Circuit	SPDT
Color - Actuator/Cap	Red
Current Rating (Amps)	250 mA
Electrical Life	250000 Cycles
Mounting Type	Panel Mount, Rear
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	6.75 mm
Switch Function	On-Mom
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	115 V

Part	Circuit	Mounting Type	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions [diameter]	Switch Function	Termination Style	Voltage Rating - AC	Color - Actuator/Cap	Current Rating (Amps)	Actuator Marking	Type	Electrical Life
Grayhill Inc. 46-101 RED	SPDT	Panel Mount Rear	Round Plunger	85 °C	-40 °C	6.75 mm	On-Mom	Solder Lug	115 V	Red	250 mA	No Marking	Standard	250000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPDT Standard Panel Mount, Rear
