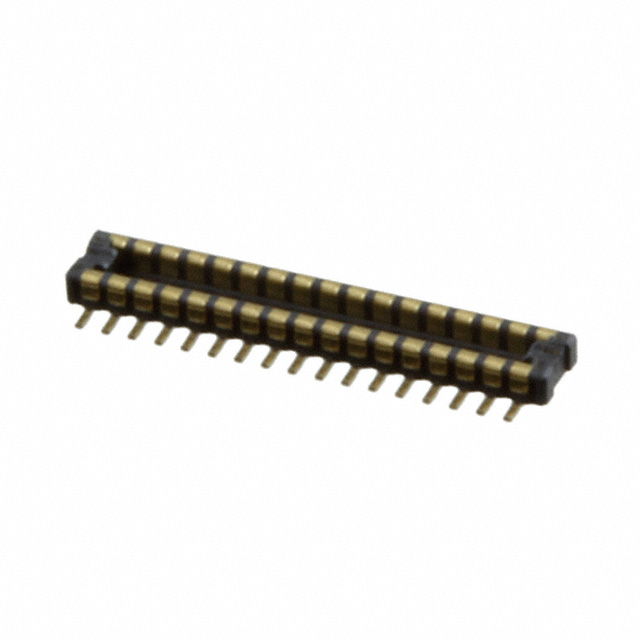

WP21-P030VA1-R8000
JAE Electronics
CONN PLUG 30POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WP21-P030VA1-R8000
JAE Electronics
CONN PLUG 30POS SMD GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WP21-P030VA1-R8000 |
|---|---|
| Connector Type | Outer Shroud Contacts, Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 1.97 Áin |
| Contact Finish Thickness | 0.05 Ám |
| Features | Solder Retention |
| Height Above Board [z] | 0.48 mm |
| Height Above Board [z] | 0.019 " |
| Mated Stacking Heights | 0.6 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 30 |
| Number of Rows | 2 |
| Pitch [x] | 0.35 mm |
| Pitch [x] | 0.014 in |
