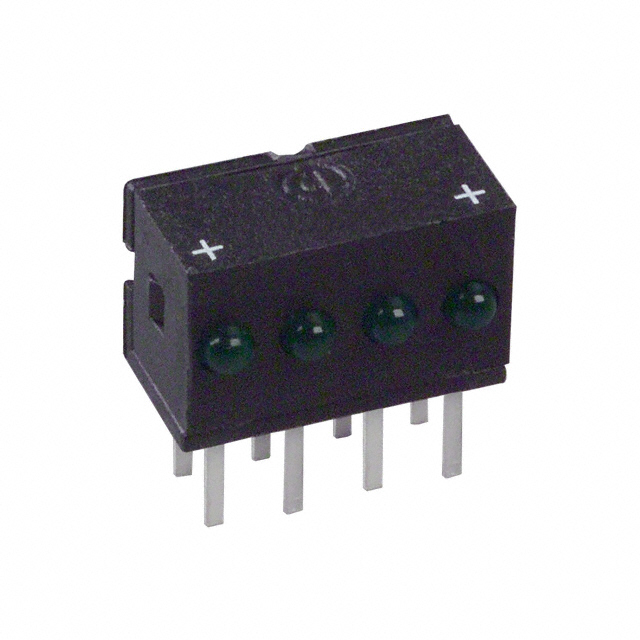

LED CBI 2MM QUAD GREEN RA
Deep-Dive with AI
Search across all available documentation for this part.
5554301F
ActiveDIALIGHT
LED CBI 2MM QUAD GREEN RA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5554301F |
|---|---|
| Color | Green (x 4) |
| Configuration | 4 Wide |
| Lens Size [diameter] | 2 mm |
| Lens Style | Round with Domed Top |
| Lens Type | Clear |
| Millicandela Rating | 1 mcd |
| Mounting Type | Through Hole, Right Angle |
| Viewing Angle [custom] | 40 ° |
| Voltage Rating | 2.4 V |
| Wavelength - Peak | 565 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.00 | |
| 10 | $ 4.24 | |||
| 100 | $ 3.47 | |||
| 1000 | $ 2.69 | |||
Description
General part information
5554301 Series
LED Circuit Board Indicator LED Circuit Board Indicator 4 Wide Green (x 4) Clear 2.4V 20mA Round with Domed Top 2.00mm Dia Through Hole, Right Angle
