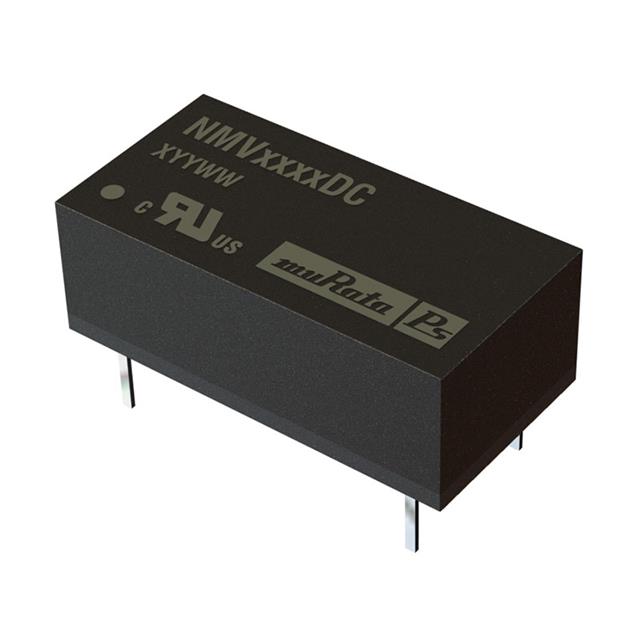

NMV0512DC

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER +/-12V 1W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

NMV0512DC

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER +/-12V 1W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NMV0512DC

Applications	ITE (Commercial)
Current - Output (Max) [Max]	42 mA
Current - Output (Max) [Max]	42 mA
Efficiency	78 %
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	14-DIP Module, 6 Leads
Size / Dimension [x]	0.77 in, 19.6 mm
Size / Dimension [y]	0.39 ", 9.9 mm
Size / Dimension [z]	0.27 ", 6.9 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	5.5 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Isolation	3000 V
Voltage - Output 1	12 V
Voltage - Output 2	-12 V

NMV05 Series

Part	Efficiency	Current - Output (Max) [Max]	Current - Output (Max) [Max]	Mounting Type	Voltage - Input (Max) [Max]	Applications	Package / Case	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Type	Voltage - Output 1	Voltage - Output 2	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Number of Outputs	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Current - Output (Max)
Murata Power Solutions Inc. NMV0512SC	78 %	42 mA	42 mA	Through Hole	5.5 V	ITE (Commercial)	7-SIP Module 5 Leads	4.5 V	85 °C	-40 °C	3000 V	Isolated Module	12 V	-12 V	6 mm	0.39 in	10 mm	0.24 in	19.5 mm	0.77 "	2
Murata Power Solutions Inc. NMV0505SAC	68 %	200 mA		Through Hole	5.5 V	ITE (Commercial)	7-SIP Module 4 Leads	4.5 V	85 °C	-40 °C	3000 V	Isolated Module	5 V		6 mm	0.39 in	10 mm	0.24 in	19.5 mm	0.77 "	1
Murata Power Solutions Inc. NMV0509SAC	75 %			Through Hole	5.5 V	ITE (Commercial)	7-SIP Module 4 Leads	4.5 V	85 °C	-40 °C	3000 V	Isolated Module	9 V		6 mm	0.39 in	10 mm	0.24 in	19.5 mm	0.77 "	1
Murata Power Solutions Inc. NMV0509DAC	75 %			Through Hole	5.5 V	ITE (Commercial)	14-DIP Module 6 Leads	4.5 V	85 °C	-40 °C	3000 V	Isolated Module	9 V								1	0.77 in 19.6 mm	0.27 " 6.9 mm	0.39 " 9.9 mm
Murata Power Solutions Inc. NMV0515DAC	78 %	67 mA		Through Hole	5.5 V	ITE (Commercial)	14-DIP Module 6 Leads	4.5 V	85 °C	-40 °C	3000 V	Isolated Module	15 V								1	0.77 in 19.6 mm	0.27 " 6.9 mm	0.39 " 9.9 mm
Murata Power Solutions Inc. NMV0515DC	79 %			Through Hole	5.5 V	ITE (Commercial)	14-DIP Module 6 Leads	4.5 V	85 °C	-40 °C	3000 V	Isolated Module	15 V	-15 V							2	0.77 in 19.6 mm	0.27 " 6.9 mm	0.39 " 9.9 mm	33 mA
Murata Power Solutions Inc. NMV0505DAC	68 %	200 mA		Through Hole	5.5 V	ITE (Commercial)	14-DIP Module 6 Leads	4.5 V	85 °C	-40 °C	3000 V	Isolated Module	5 V								1	0.77 in 19.6 mm	0.27 " 6.9 mm	0.39 " 9.9 mm
Murata Power Solutions Inc. NMV0509SC	76 %			Through Hole	5.5 V	ITE (Commercial)	7-SIP Module 5 Leads	4.5 V	85 °C	-40 °C	3000 V	Isolated Module	9 V	-9 V	6 mm	0.39 in	10 mm	0.24 in	19.5 mm	0.77 "	2				55 mA
Murata Power Solutions Inc. NMV0512DAC	77 %	84 mA		Through Hole	5.5 V	ITE (Commercial)	14-DIP Module 6 Leads	4.5 V	85 °C	-40 °C	3000 V	Isolated Module	12 V								1	0.77 in 19.6 mm	0.27 " 6.9 mm	0.39 " 9.9 mm
Murata Power Solutions Inc. NMV0512DC	78 %	42 mA	42 mA	Through Hole	5.5 V	ITE (Commercial)	14-DIP Module 6 Leads	4.5 V	85 °C	-40 °C	3000 V	Isolated Module	12 V	-12 V							2	0.77 in 19.6 mm	0.27 " 6.9 mm	0.39 " 9.9 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 10.15

Description

General part information

NMV05 Series

Isolated Module DC DC Converter 2 Output 12V -12V 42mA, 42mA 4.5V - 5.5V Input
