172313RP

Active

Amphenol RF

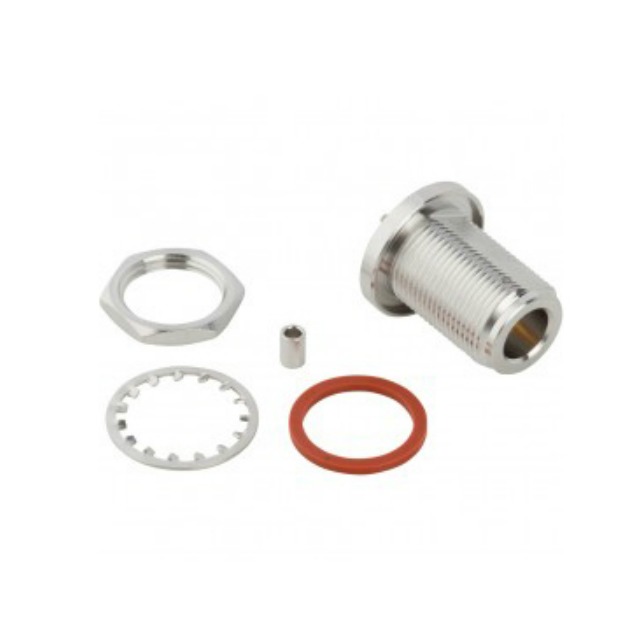

N STRAIGHT CRIMP BULKHEAD JACK R

Search across all available documentation for this part.

Active

Amphenol RF

N STRAIGHT CRIMP BULKHEAD JACK R

Technical Specifications

Parameters and characteristics for this part

Specification	172313RP

Body Finish	White Bronze
Body Material	Brass
Cable Group	178B, RG-178, 196A, M17/93-RG178, 196, 178A
Center Contact Material	Brass, Phosphor Bronze
Center Contact Plating	Gold
Connector Style	RP-N Type
Connector Type	Male Pin, Jack
Contact Termination	Solder, Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp

Part	Cable Group	Connector Type	Connector Style	Shield Termination	Mating Cycles	Dielectric Material	Impedance	Body Finish	Contact Termination	Center Contact Material	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating	Number of Ports	Body Material	Frequency - Max [Max]	Mounting Feature
Amphenol RF 172313RP	178A 178B 196 196A M17/93-RG178 RG-178	Jack Male Pin	RP-N Type	Crimp	500	Polytetrafluoroethylene (PTFE)	50 Ohms	White Bronze	Crimp Solder	Brass Phosphor Bronze	Silver	-65 ░C	165 °C	Gold	1	Brass	6000 MHz	Bulkhead - Front Side Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 11.59

General part information

RP-N Type Connector Jack, Male Pin 50 Ohms Panel Mount Crimp or Solder
